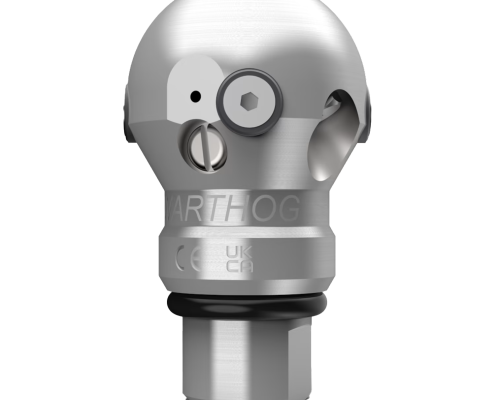

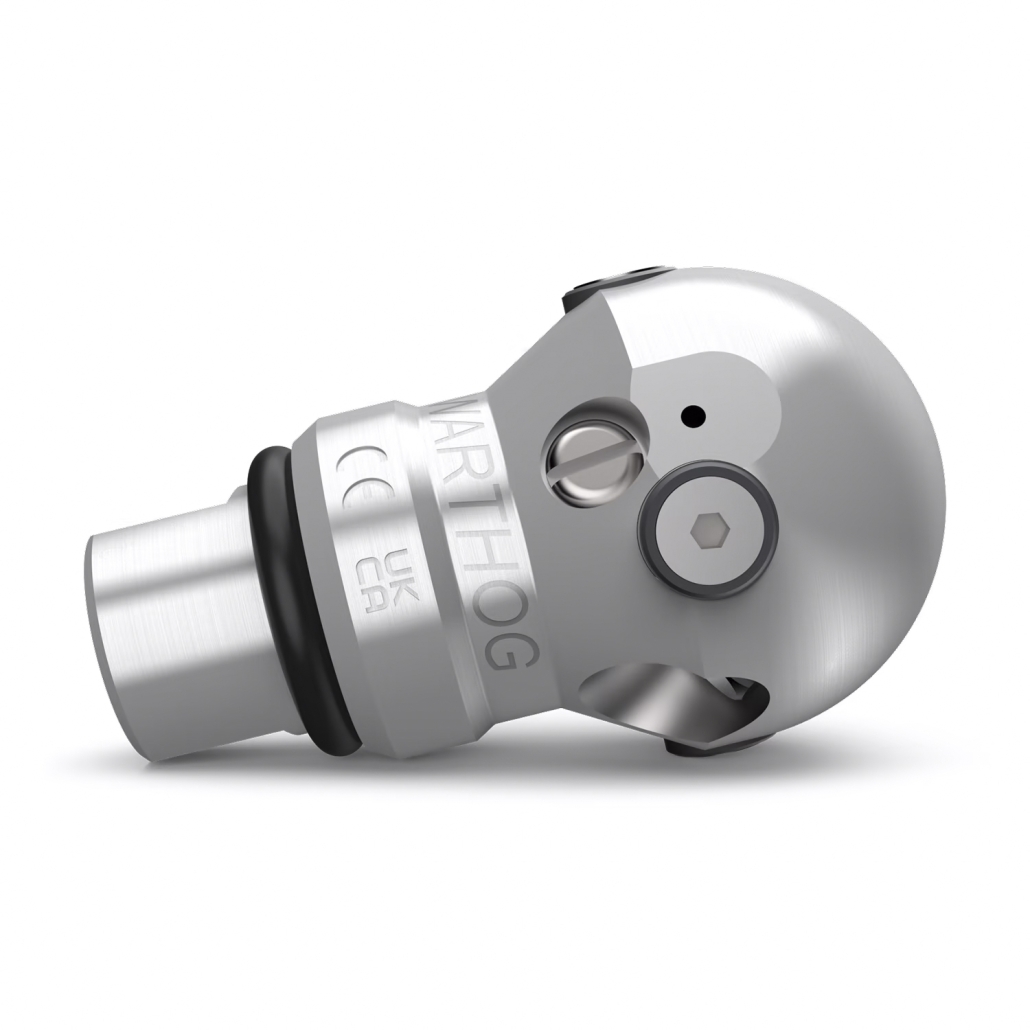

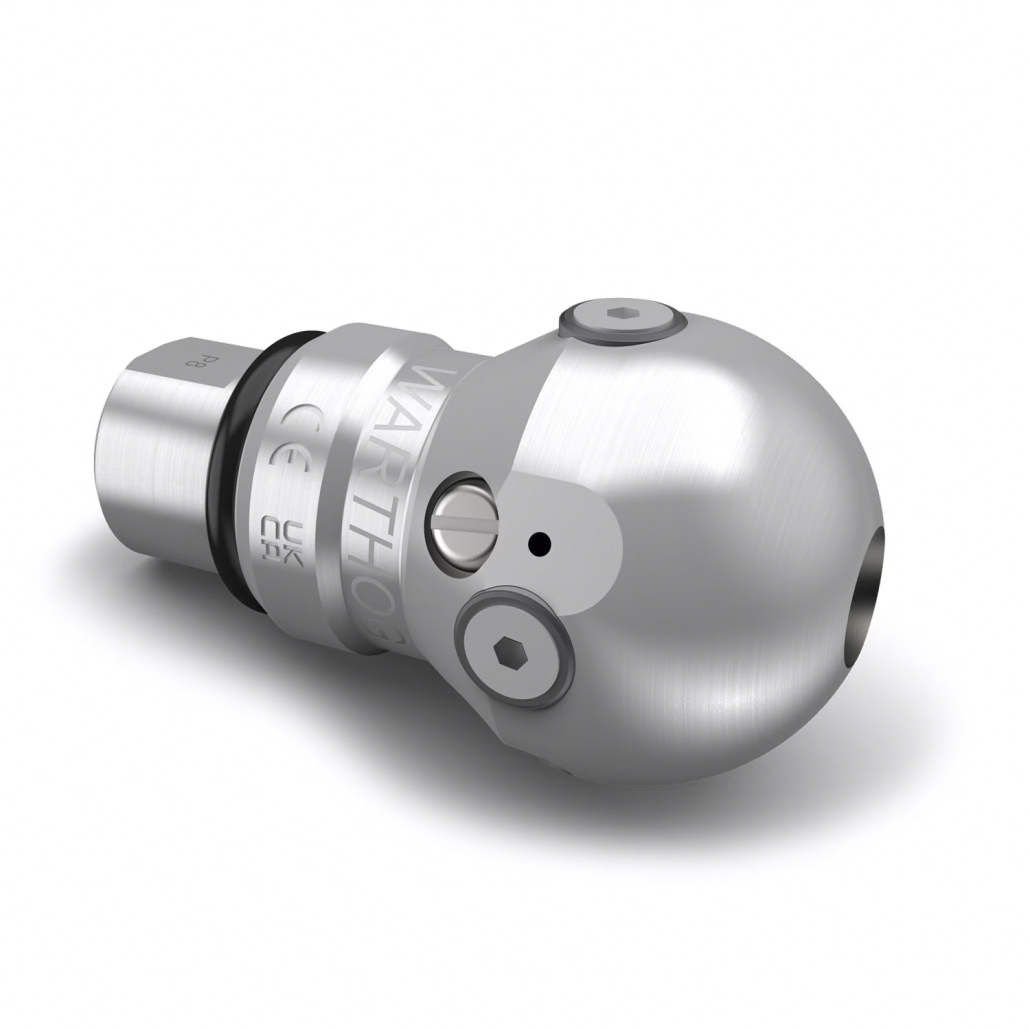

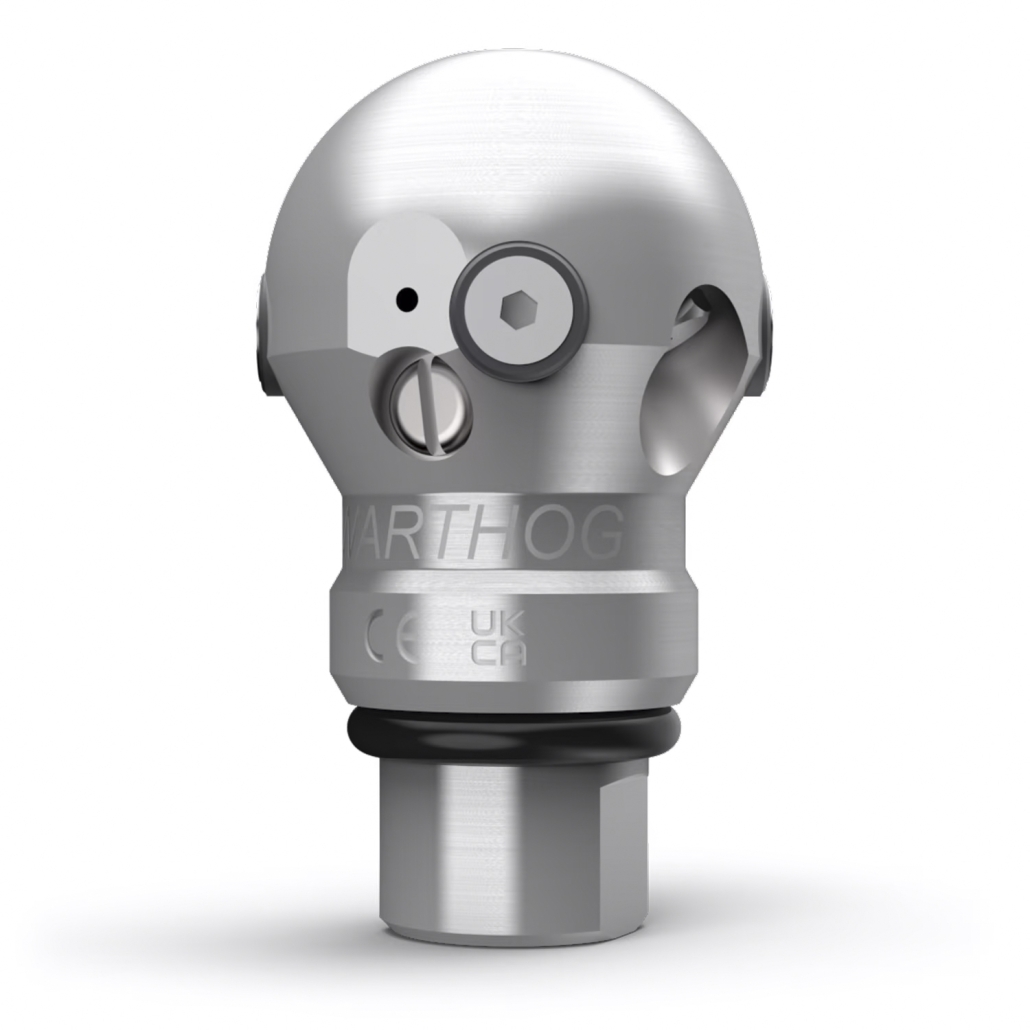

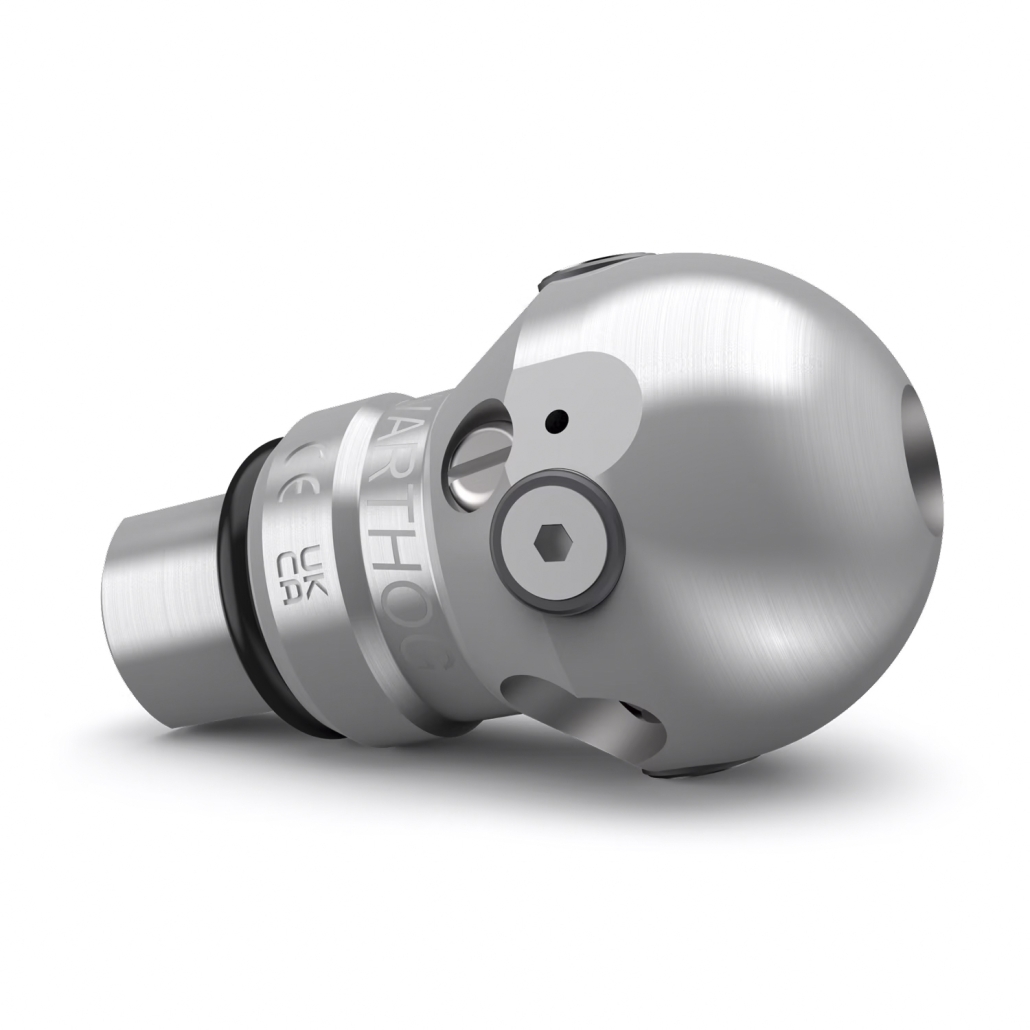

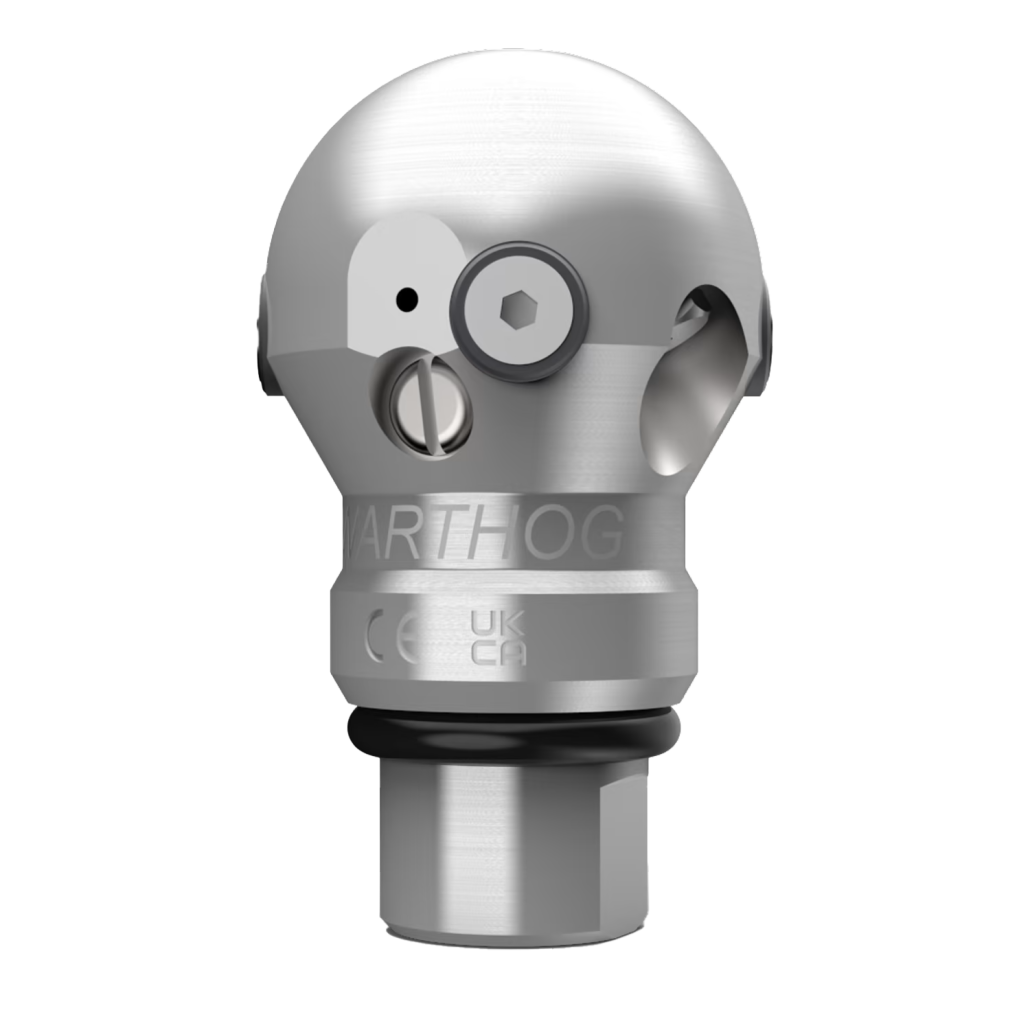

Warthog WT-3/8 Jetter Nozzle

The Classic Series Warthog models can negotiate elbows and clean-outs commonly found in laterals in homes, buildings, restaurants and other light commercial facilities. This tool is most commonly used on small capacity pumps and cart jetters. Also an excellent choice for cutting roots, clearing ice and removing blockages, the WT-3/8-C is designed specifically to handle 3”-6” lines and clean-outs.

  • 3″ to 6″ lines with elbows
  • Up to 5,000 PSI
  • Classic Model
  • Cart and Trailer Jetters

Specifications:

Tool Family Warthog Classic
Tool Model WT-3/8-C
Pipe Size 3-6 in. 76-152 mm
Pressure Range 1500–5k psi 100–350 bar
Flow Range 5-12 gpm 20-45 l/min
Flow Rating 0.75 Cv
Pulling Force 5-20 lb 22-90 N
Inlet Connection 3/8 NPT or BSPP
Nozzle Ports 3 x 1/8 NPT
Diameter 1.9 in. 48 mm
Length 3.0 in. 76 mm
Weight 1.2 lb .54 kg

Fluid Maintenance:
Demonstrates how to check and maintain viscous fluid levels in your StoneAge Warthog WT sewer cleaning tool.

Overhaul & Disassembly
Instructions on how to disassemble your StoneAge Warthog WT, including inspection. (Part 1 of complete overhaul video)

Overhaul & Assembly
Instructional video on how to re-assemble your StoneAge Warthog WT. (Part 2 of complete overhaul video)
