HotJet USA Vac ’n Jet Trailer Series

Jetter • Vacuum • Hydro-Excavator • Power Wash Trailer

Every Vac’nJet manufactured by HotJet USA is a custom build order. You will work closely with one of our jetting equipment engineers to select the correct trailer, engine and accessories to fit your needs and applications. Each HotJet USA Vac’nJet trailer Jetter is unique to the customer engineered, manufactured and delivered directly from our plant in Salt Lake City, Utah.

Due to the custom engineering for these units, please call us for pricing & availability.

Specifications & Arrow Sheets

HotJet 2 Vac’nJet Overview

HotJet 3 VacNJet Overview

HotJet II® Vac ’N Jet Overview

OPTIONS AVAILABLE

COLD WATER OPERATION
- 23HP, 35HP Vanguard or 2x 35HP for 70 HP Total
HOT WATER OPERATION
- 23HP, 35 HP Vanguard or 2x 35HP for 70HP Total
Electric Start
Proven V-Twin Engineering Reliable in Extreme Weather Conditions
Triple V-Belt Driven
Full Rear Throttle Controls
Large Vibration Isolators
EZ – Service Oil Drains (for pump and motor)
RPM Tack and Hour Meter
12 Gallon Gas Tank
24 Gallon Diesel Tank
Full Variable Pressure and Rear Throttle Control
2 – PSI Gauges Front and Rear
Three (3) Year Commercial Warranty

PUMP

Premium Triplex Pumps – max output 2 – 18 GPM
Triple V-Belt Driven for Smooth Operation
Pulsation “Jet” Valves Installed on Pump
Full Ten (10) Year Warranty

DIESEL BURNER

Cold rolled continuous schedule 80 coil. The horizontal coil is much easier to support for “over the road” transportation.
Large heating coil for fast heat rise.

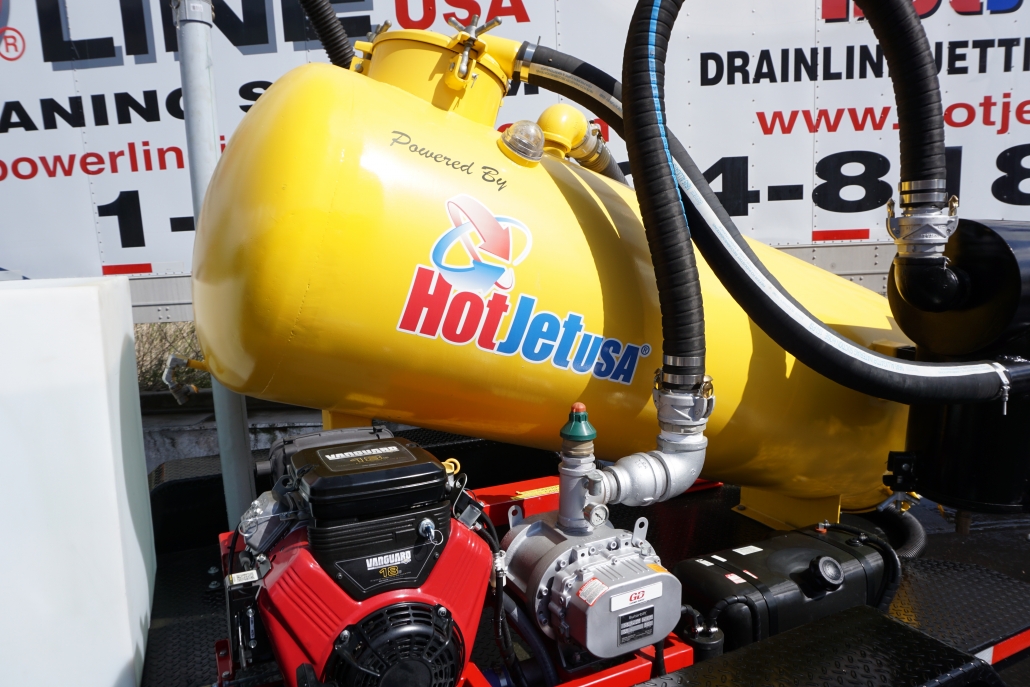

VACUUM SYSTEM

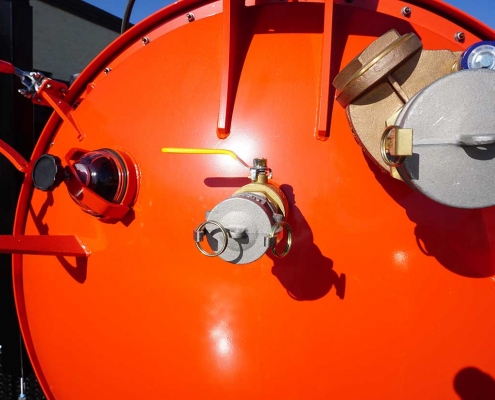

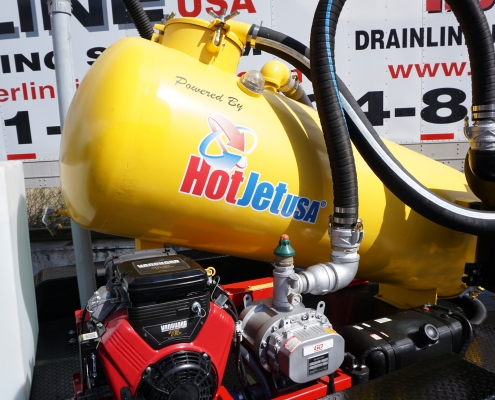

500 Gallon Spoils Tank; All Steel 3/16″ – Various sizes available

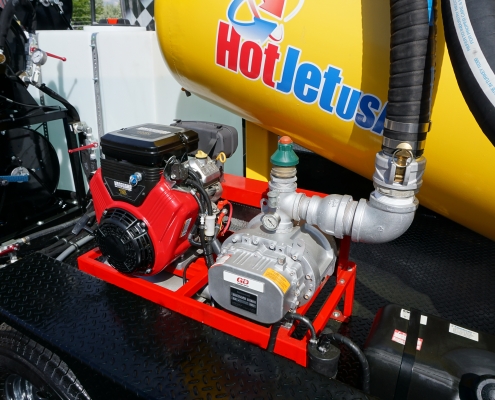

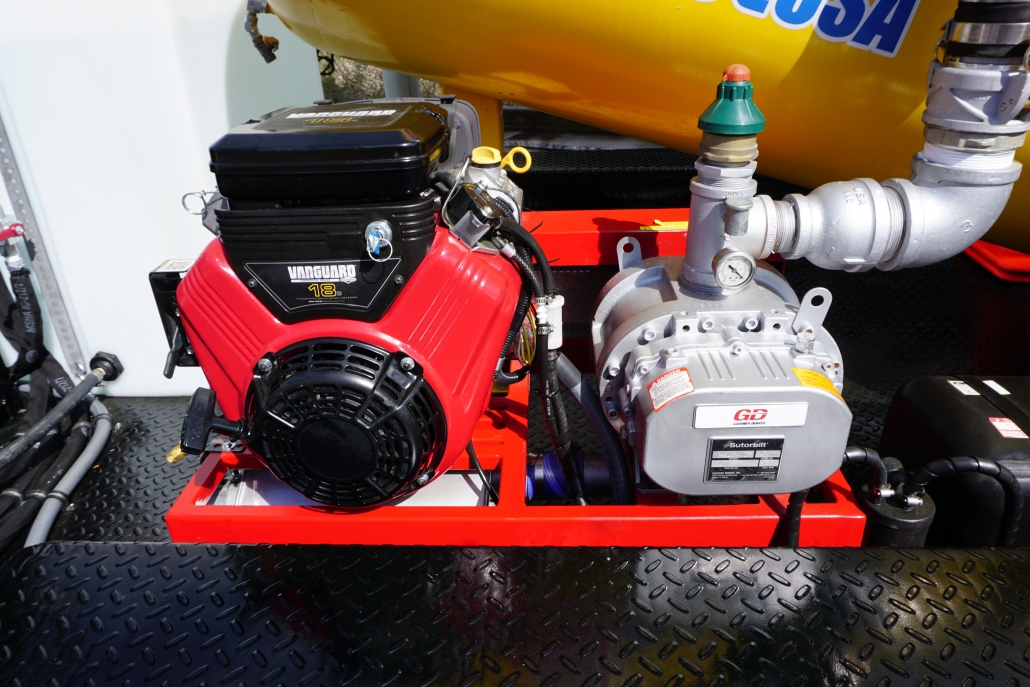

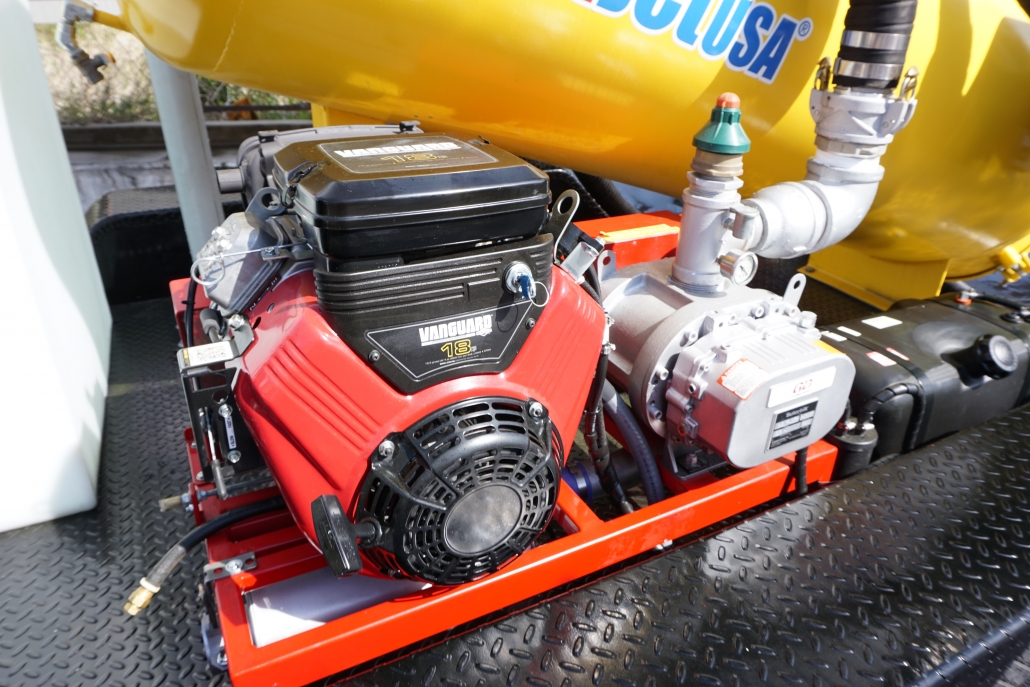

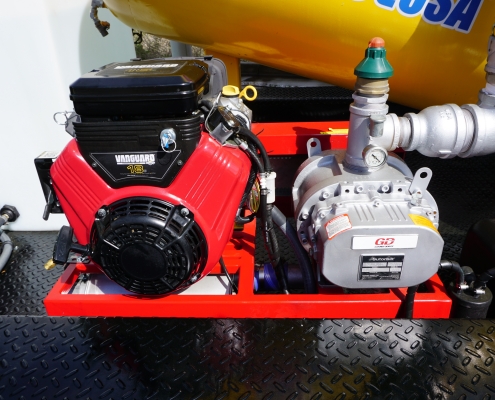

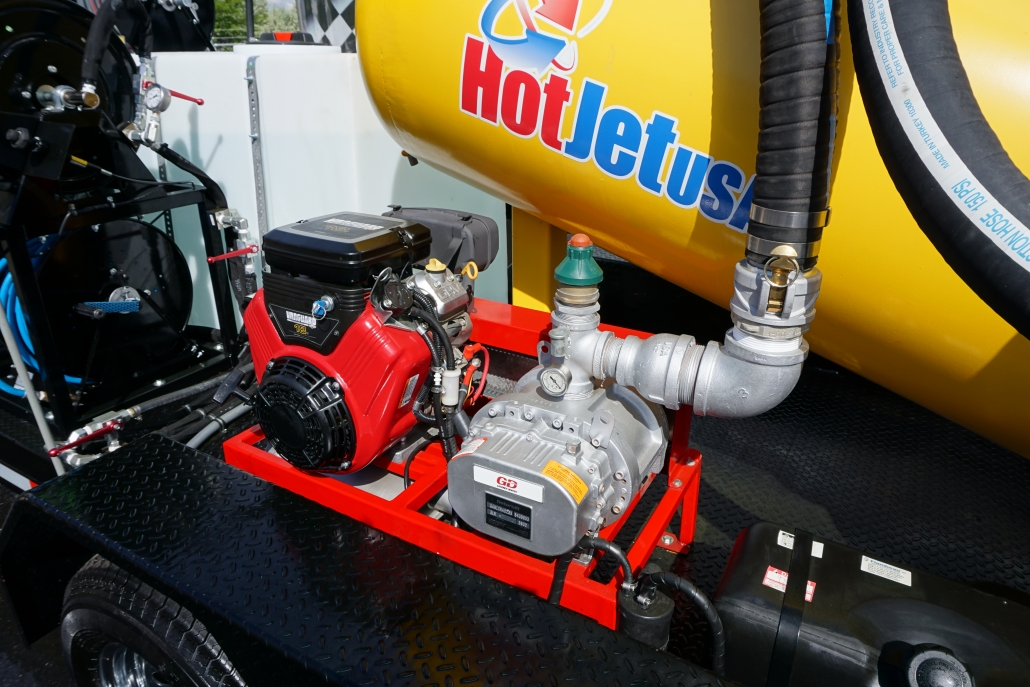

Gardner Denver Vac/Blower; 3″ Standard; Various Sizes Available
650 CFM/18″ HC

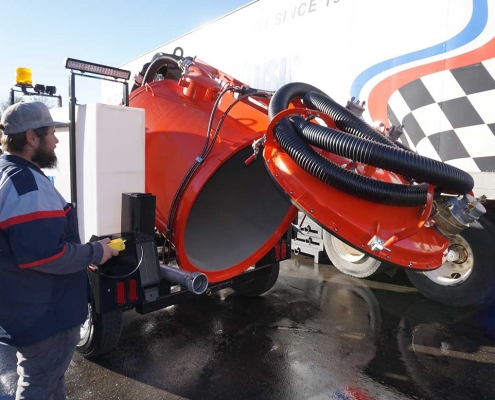

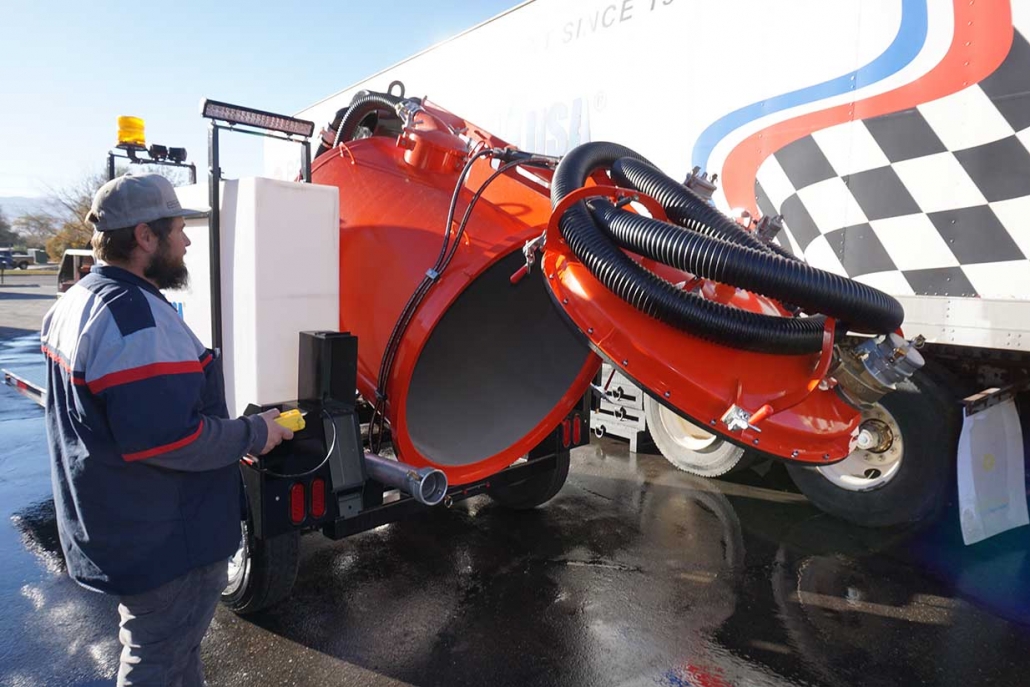

Colt 4 Ton Hydraulic Dump; Hand Held Control with 12′ Lead

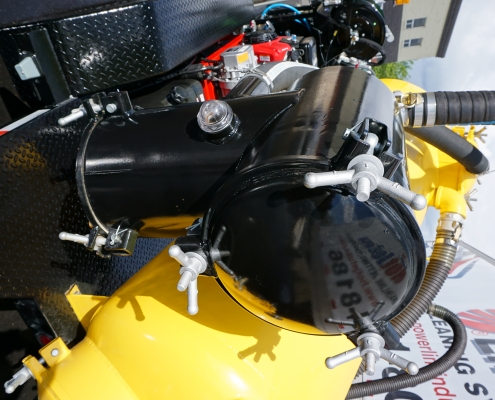

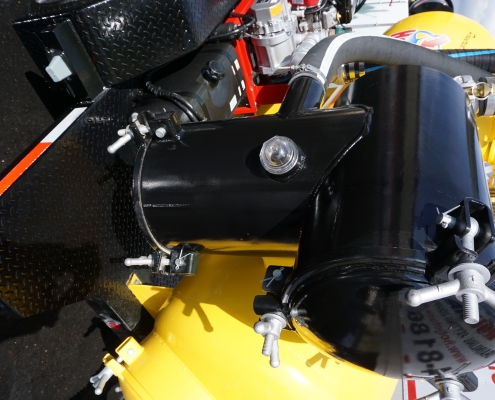

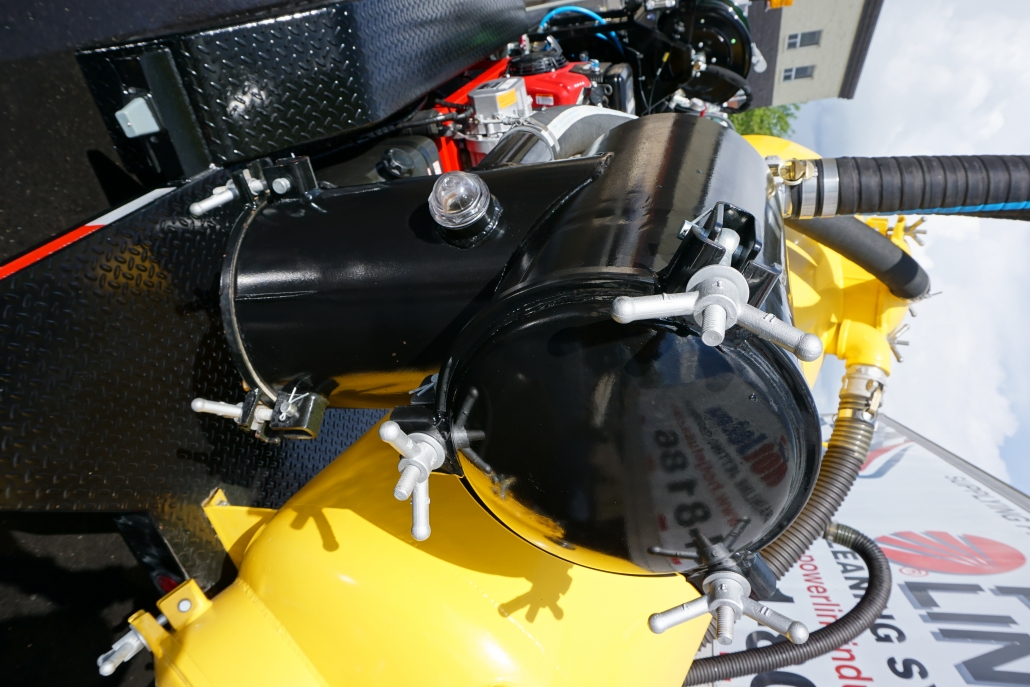

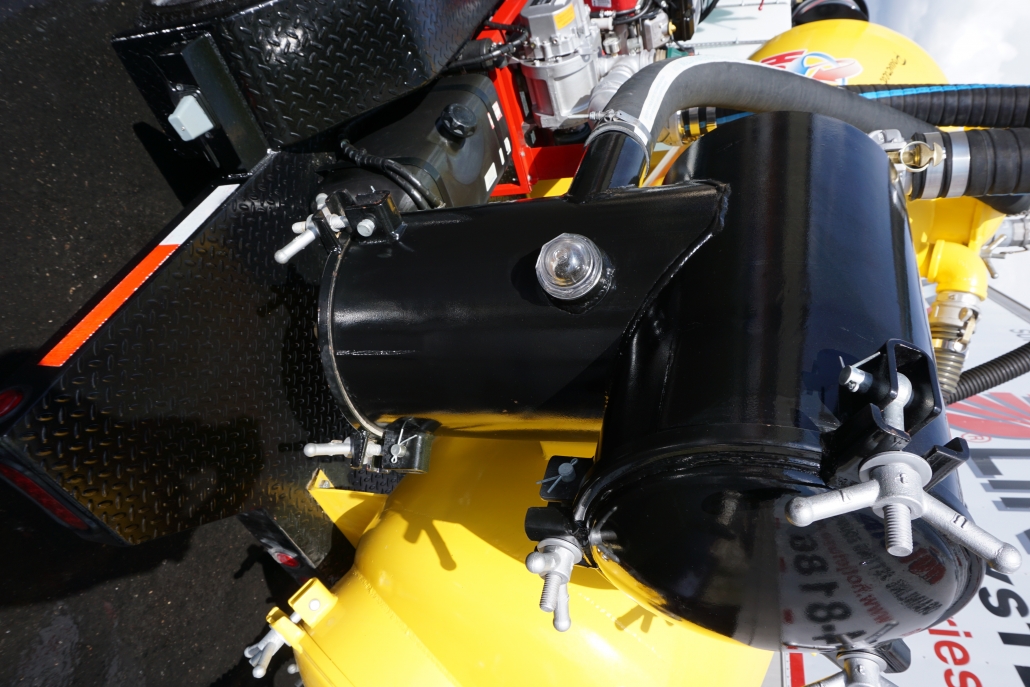

Centri-Clean Filter System; 1 Piece Multi-Stage; Washable System

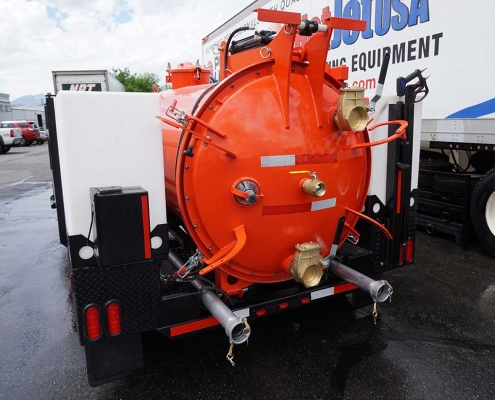

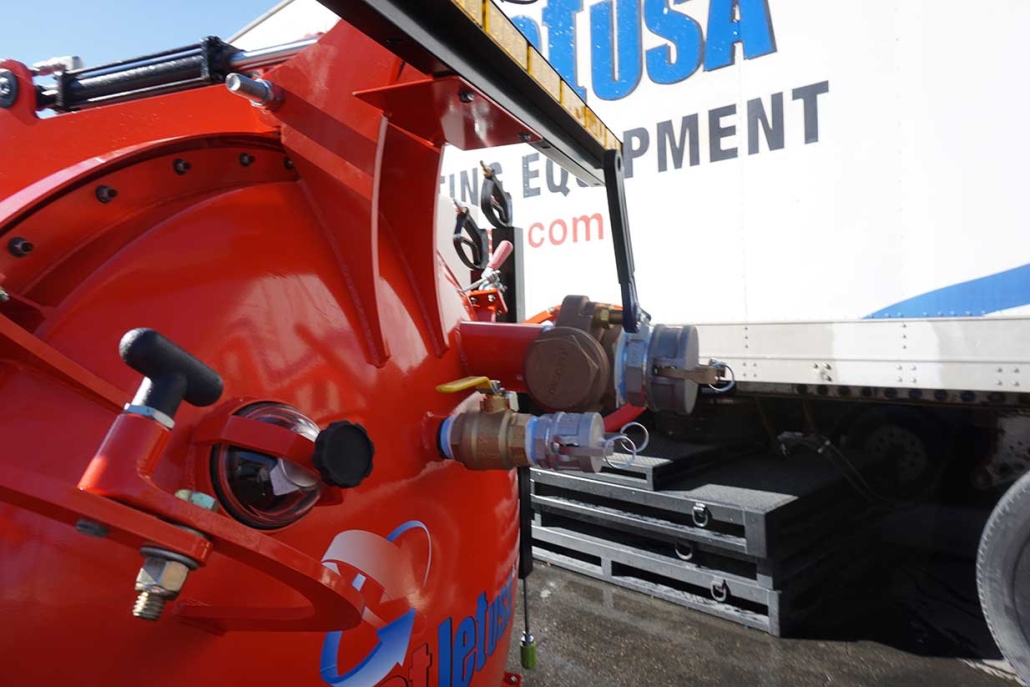

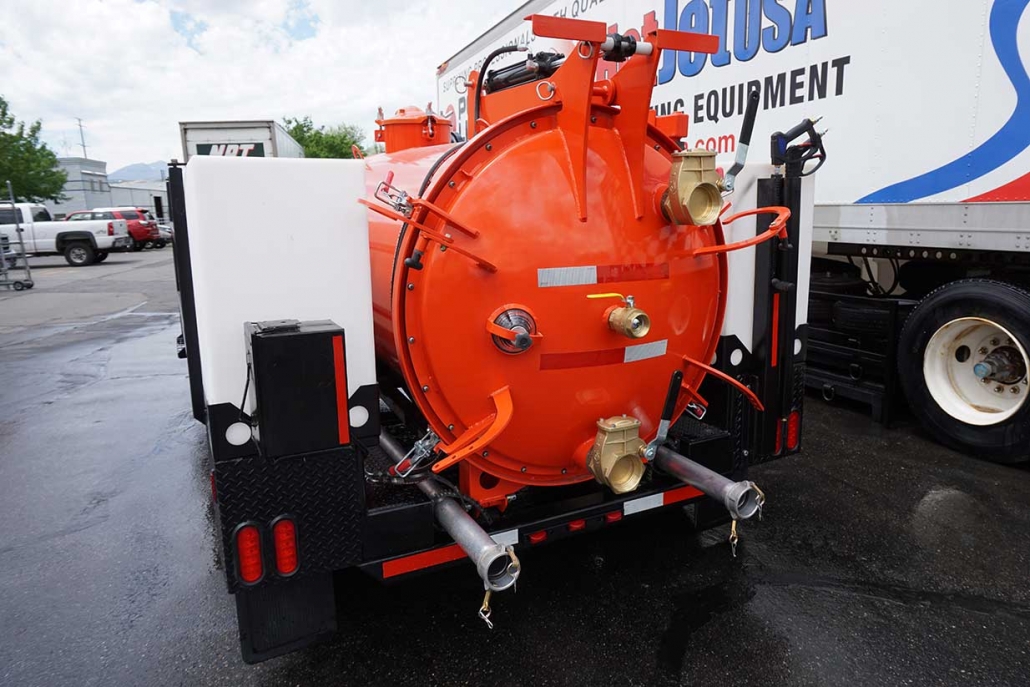

24″ Opening Rear Hatch

WATER TANK

Super Duty 300 Gallon Tank Throttle Control

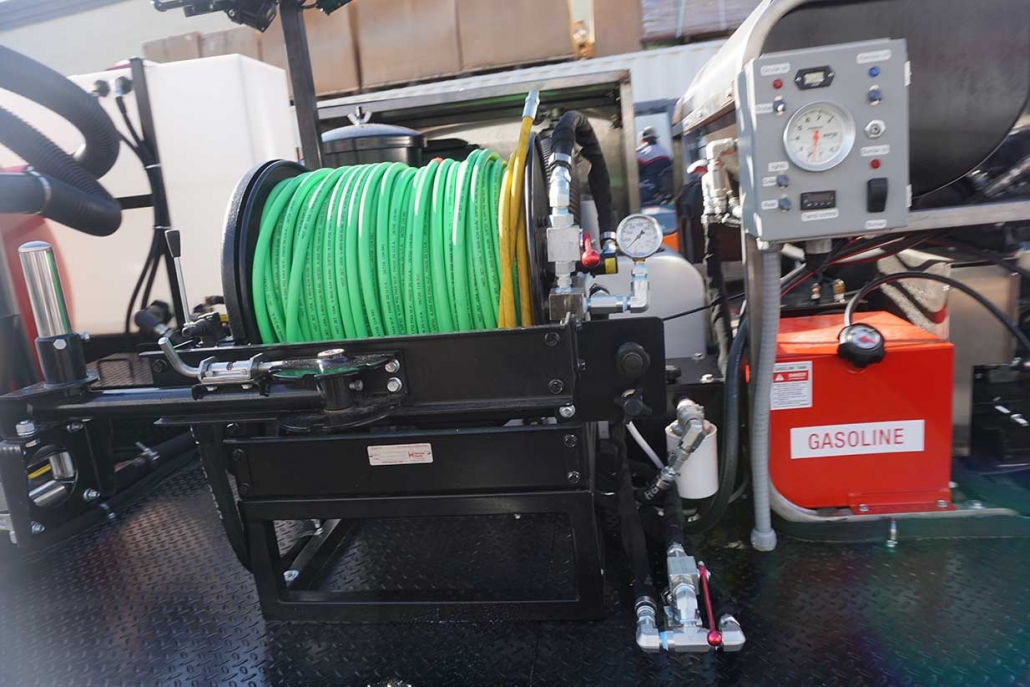

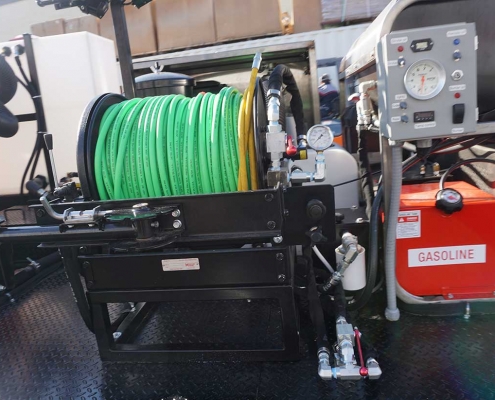

Full Throttle Control and Adjustable Pressure Controls at Rear of Trailer Low Friction Sewer Hose & Reel
Sewer Hose – 300′ 3/8″ HD Steel Braided Construction – 12,000 PSI Burst – Cut Resistant
100′ Water Blast Hose
Variable Speed Control
Heavy Duty 12 Volt Powered
120В° Guide Arm with Thumb Control

ULTRA DUTY TRAILER

Rugged, compact specially engineered trailer to haul the equipment and water load. Leaf Spring Axles cushion and distribute the weight for easy towing.

Premium Powder Coat Finish
5′ x 16′ Diamond Plate Steel Deck / Other trailer options available – CONTACT US FOR INFO
2 x 7,000 LB Axles, Electric Breaks on Each Axle
Full Adjustable Height Hitch
Accepts 2 5/16″ Ball, D-Ring or 2″ Ball (your choice)
HD Diamond Plate Fenders
DOT Legal in All 50 States

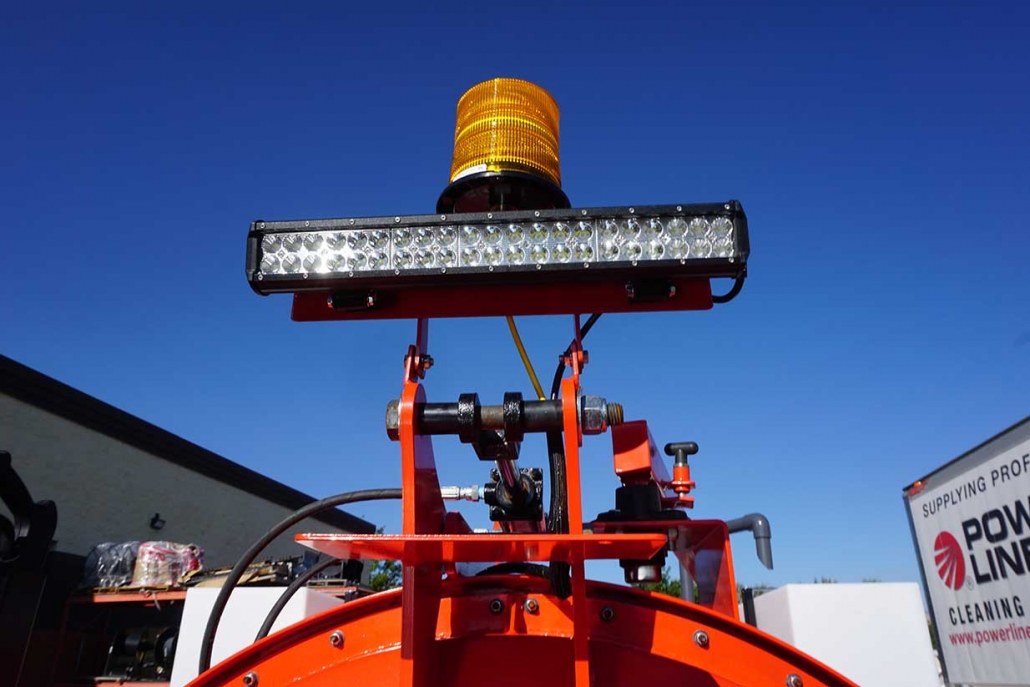

Full LED Lighting

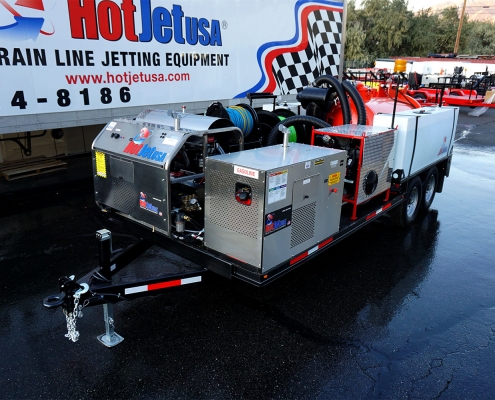

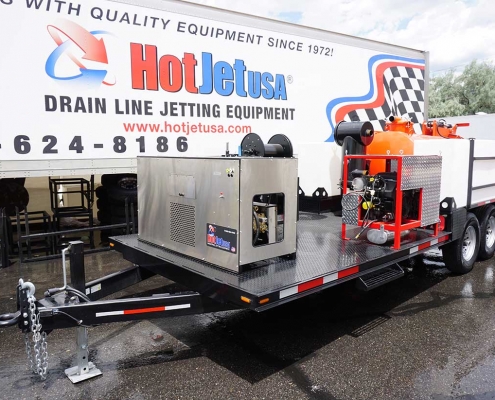

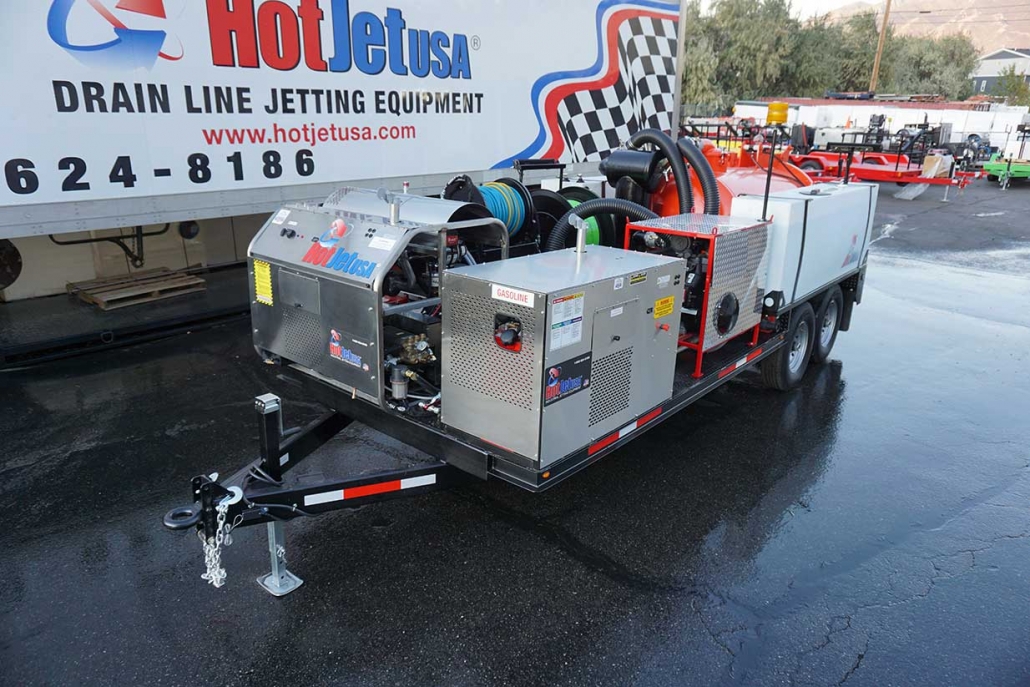

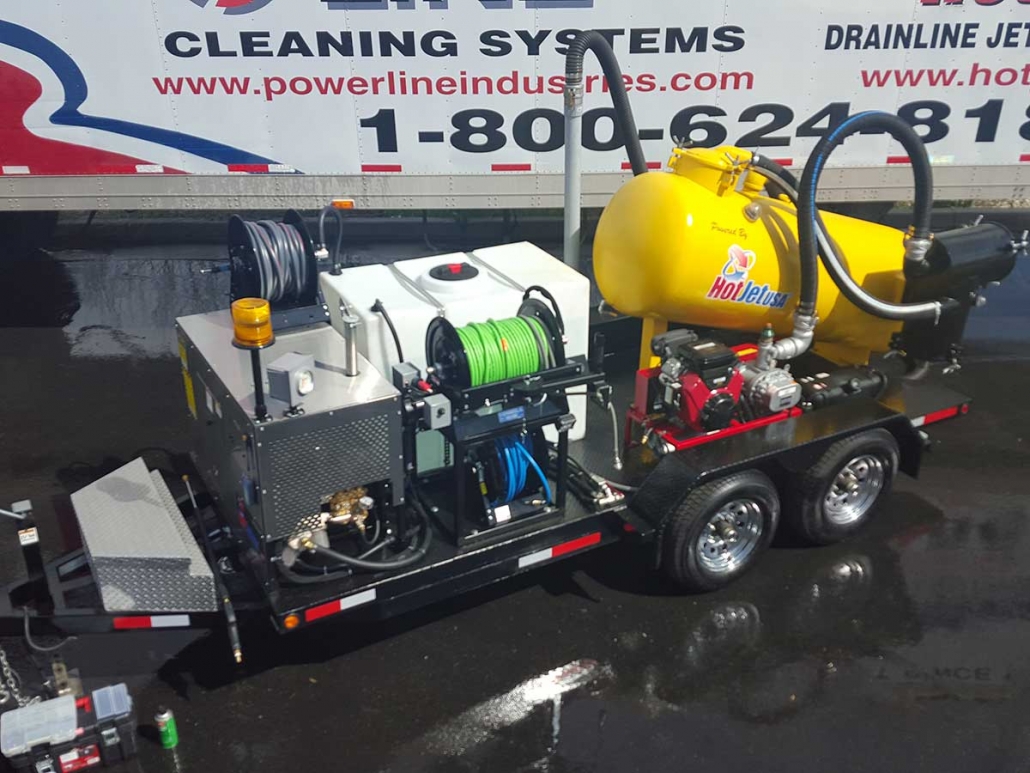

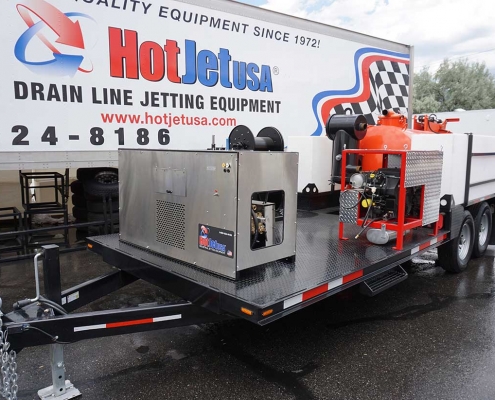

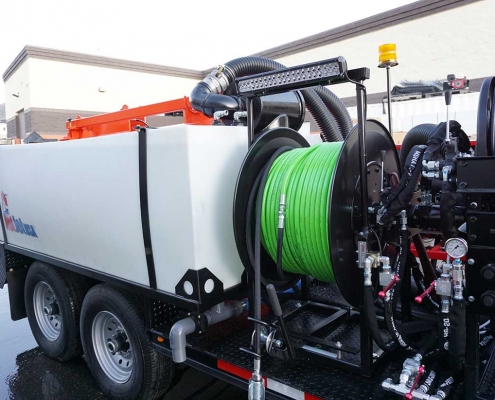

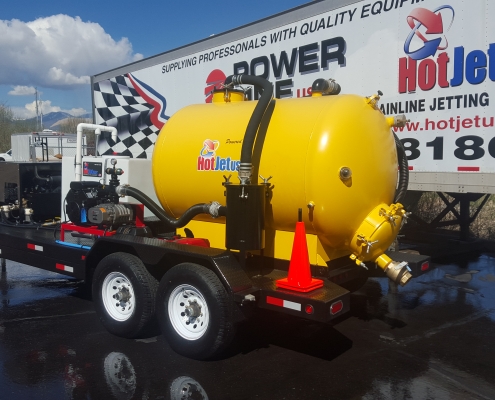

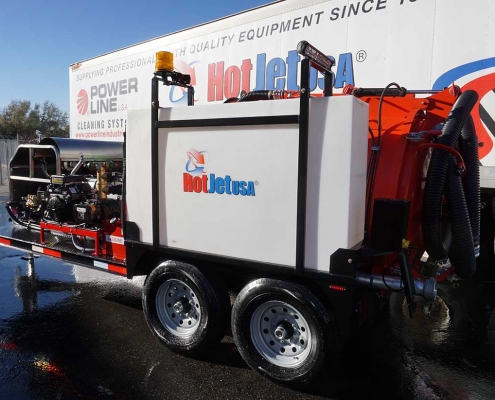

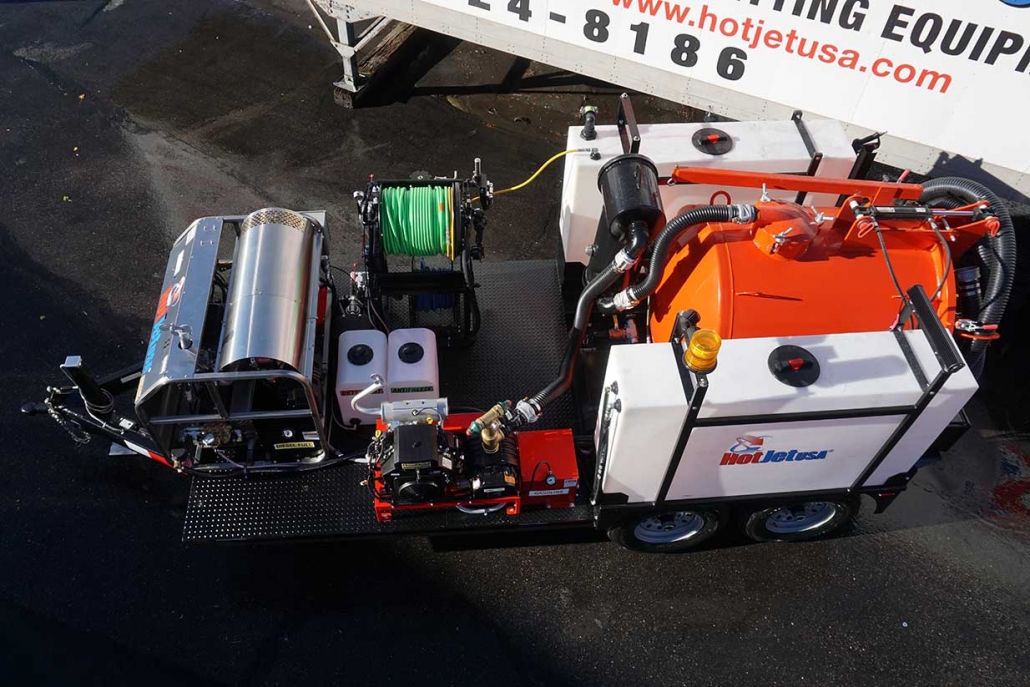

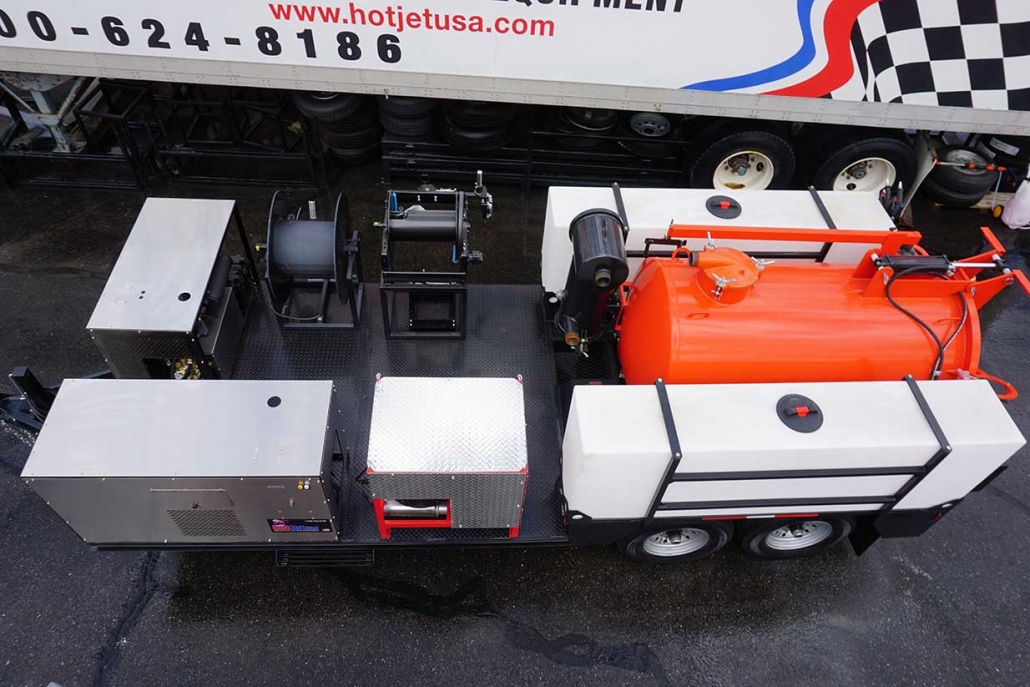

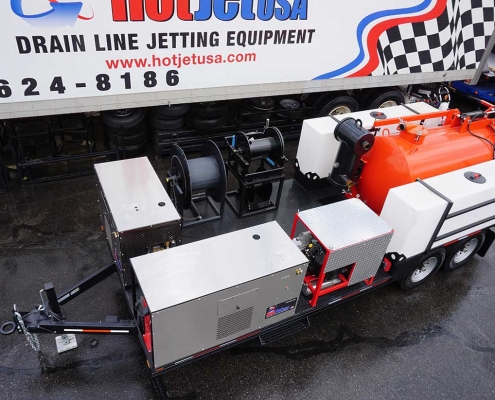

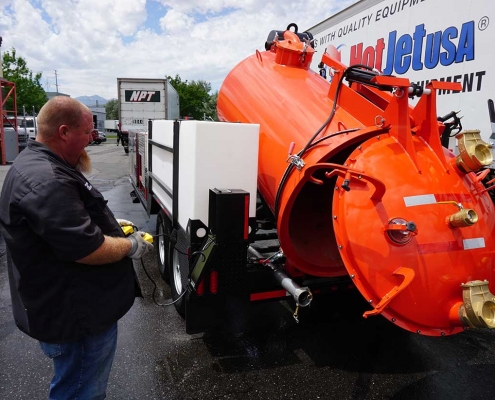

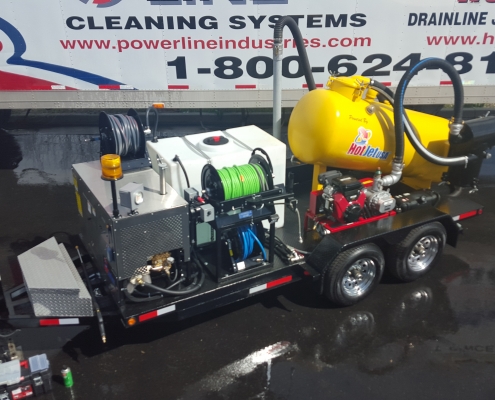

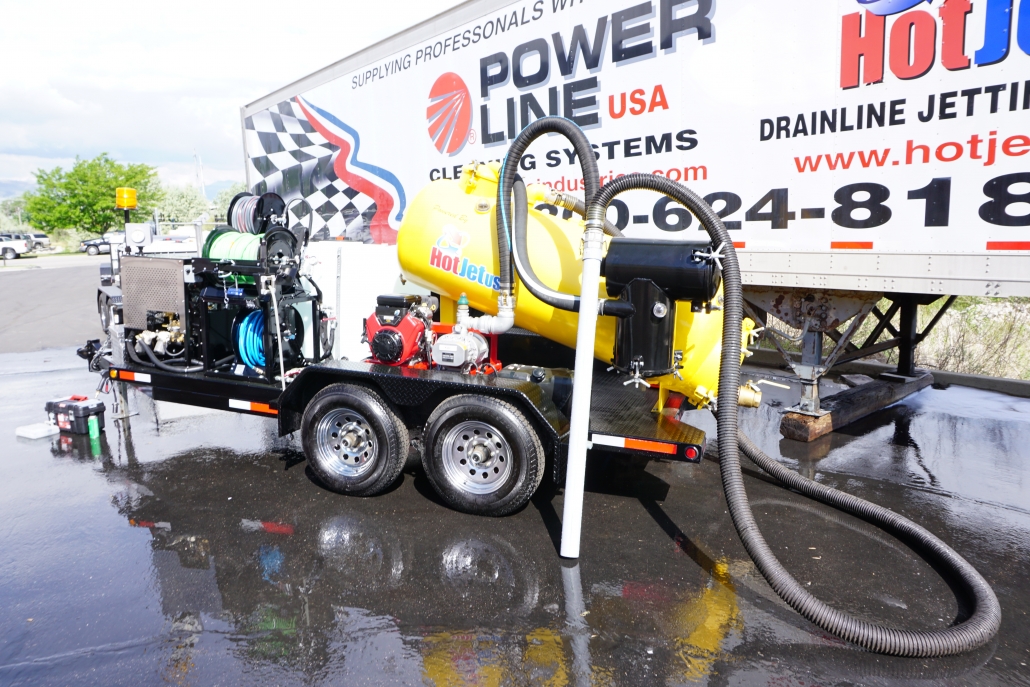

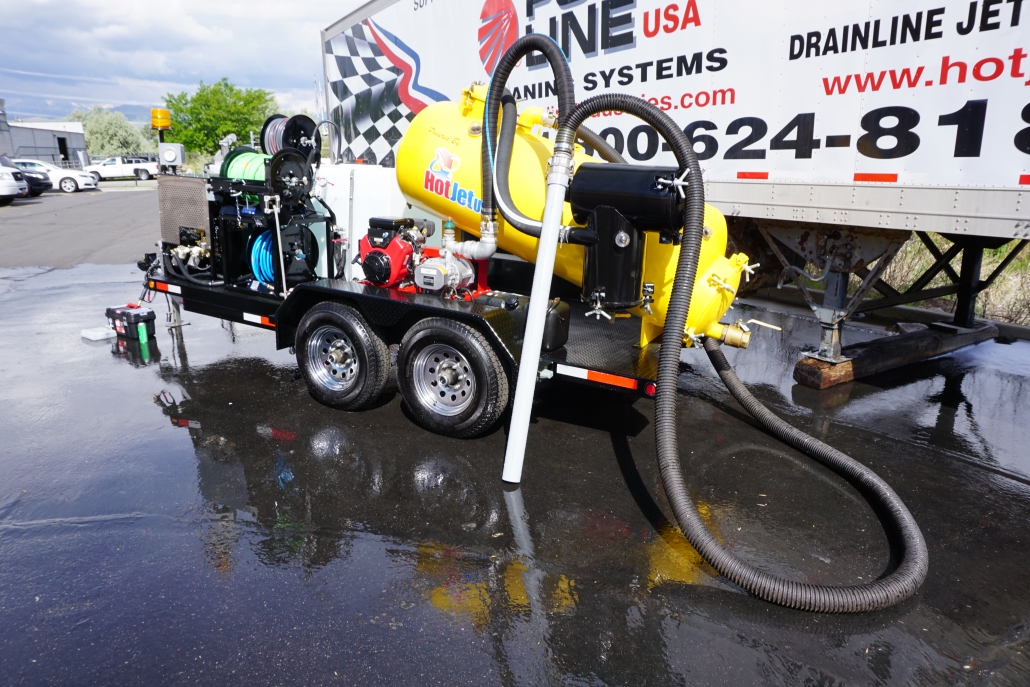

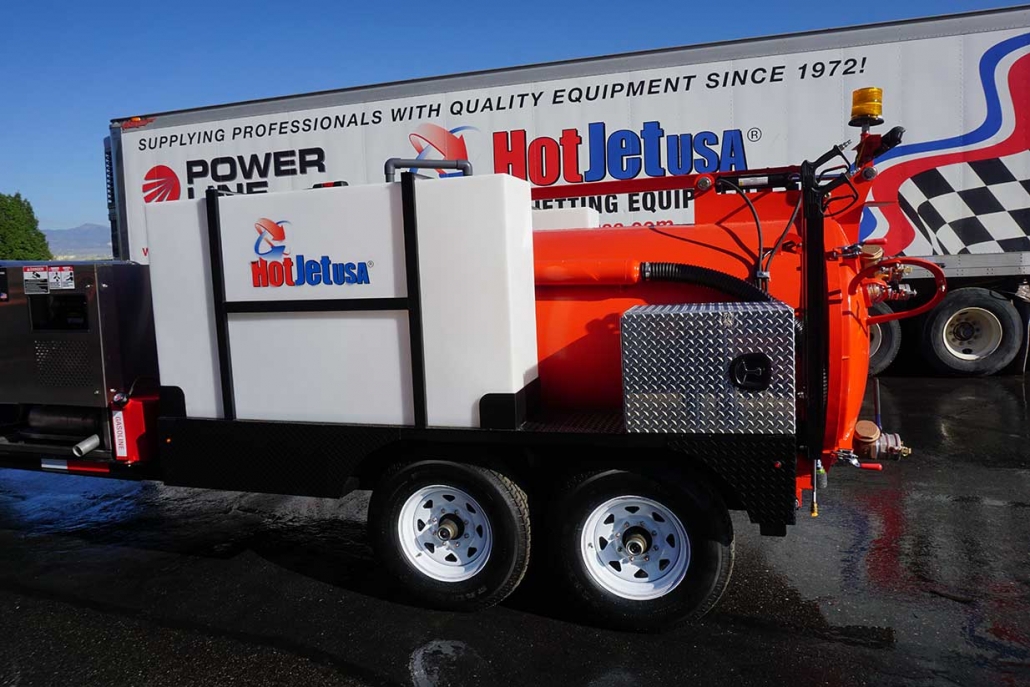

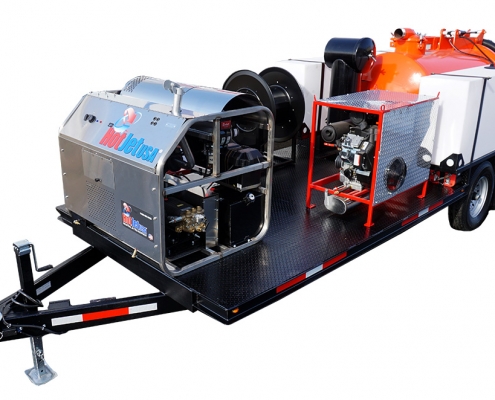

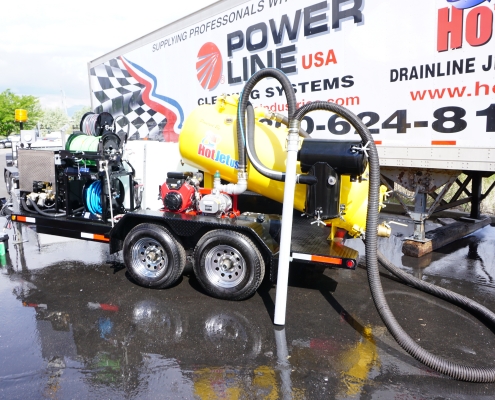

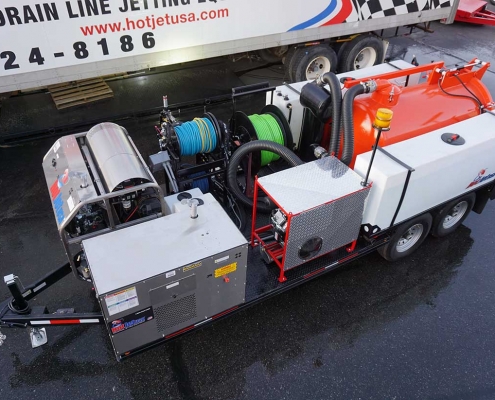

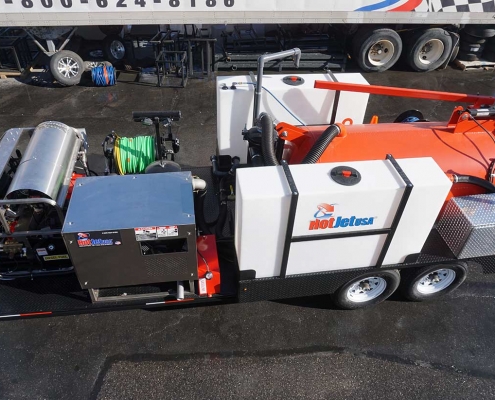

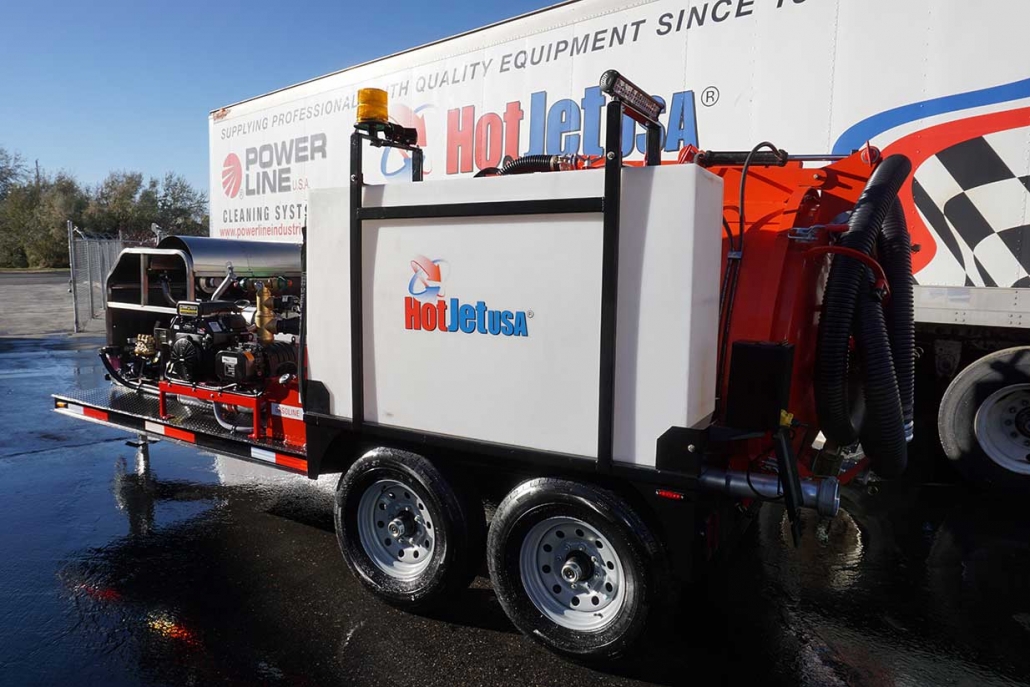

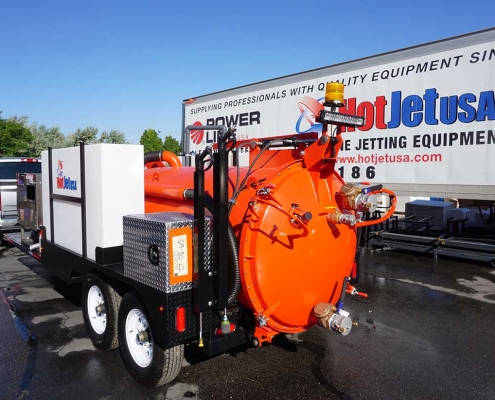

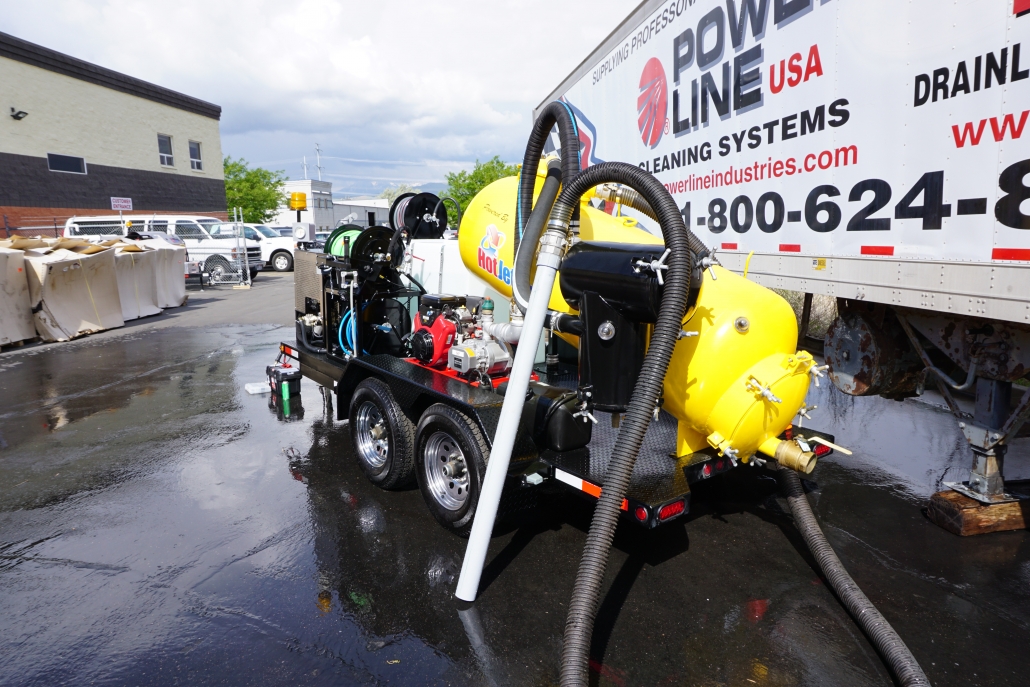

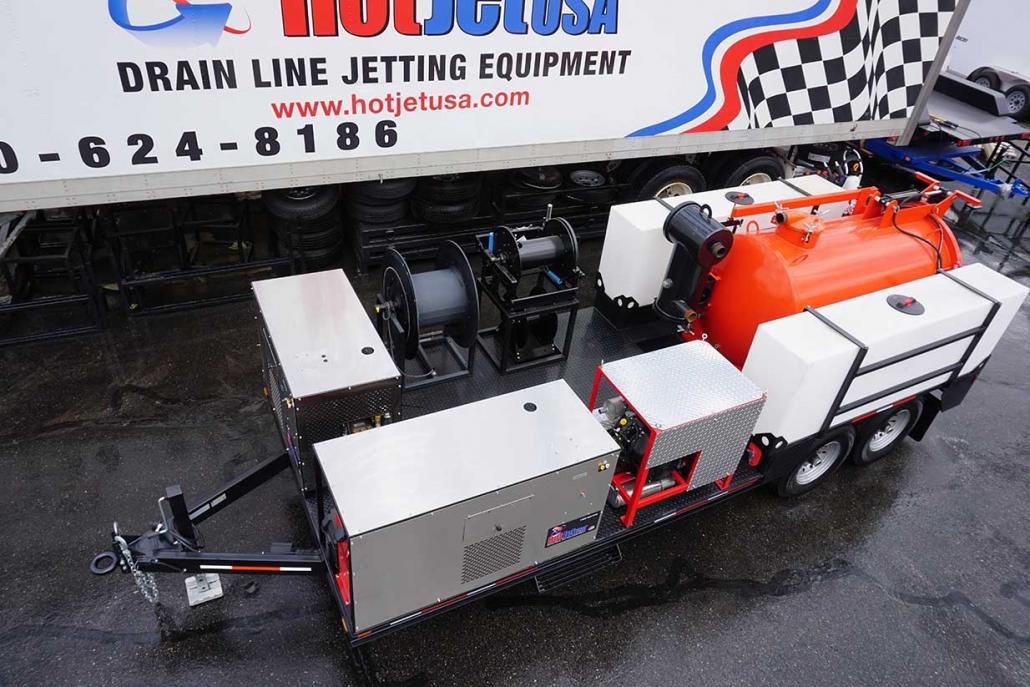

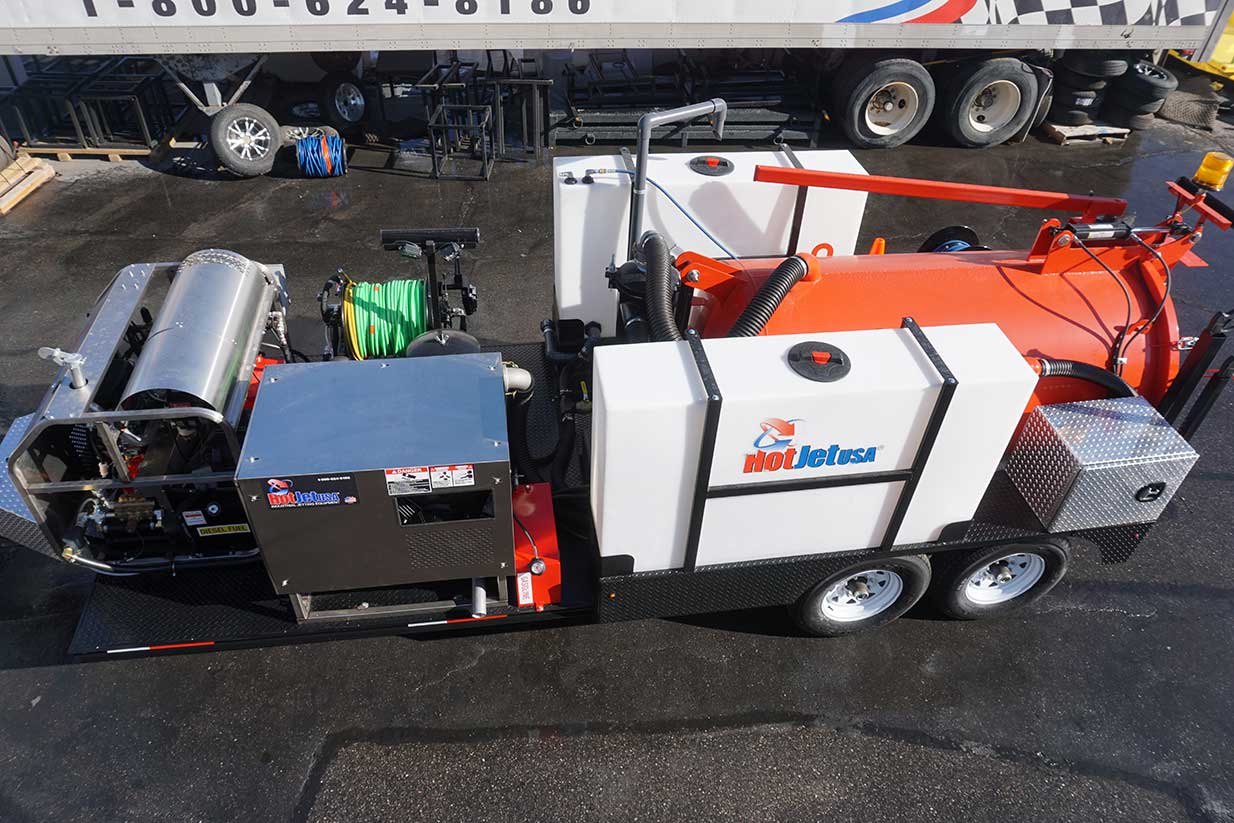

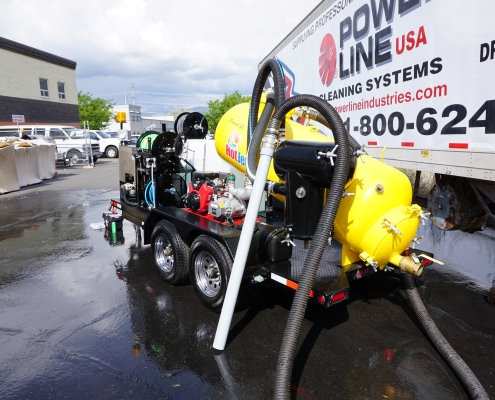

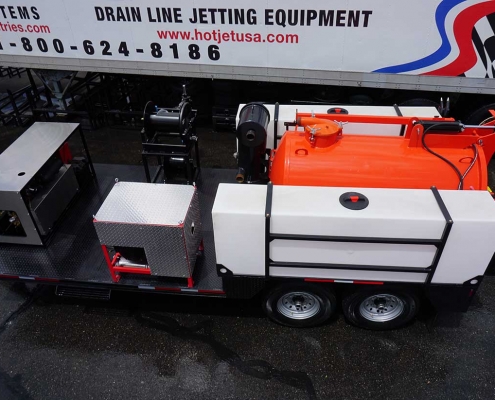

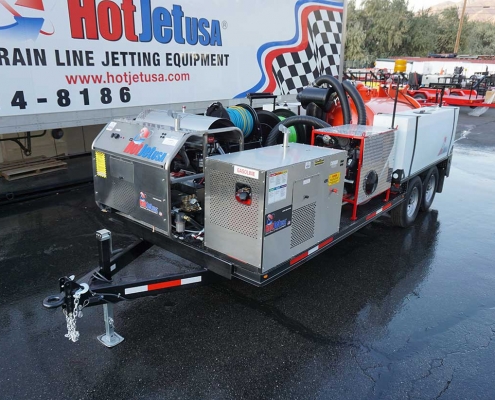

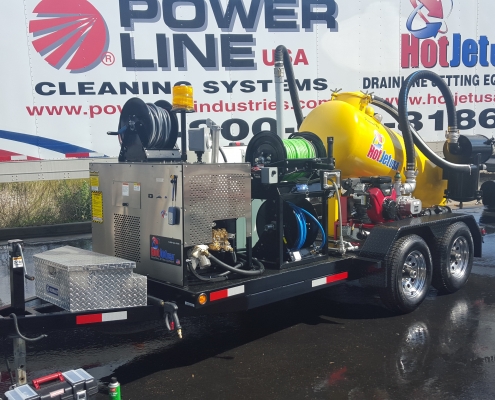

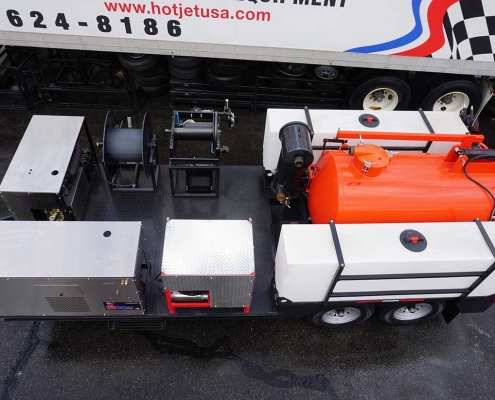

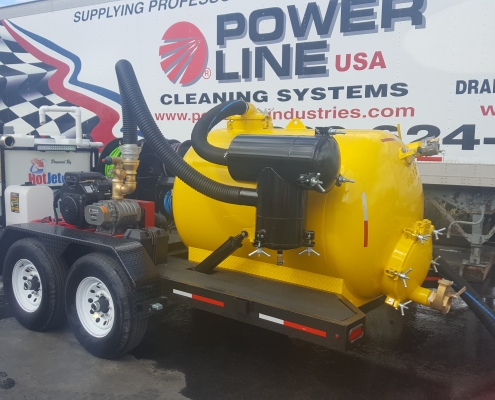

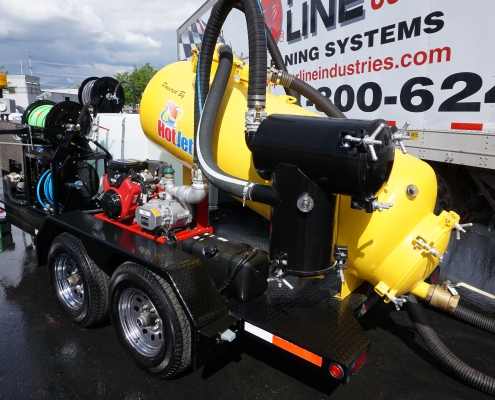

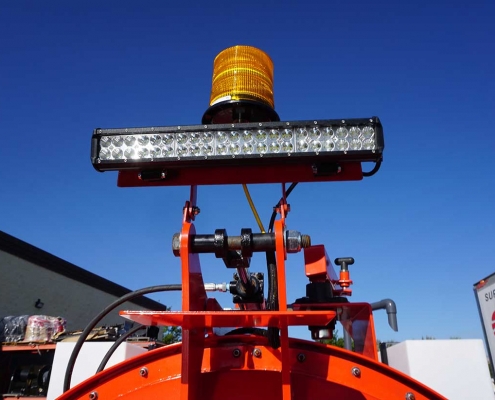

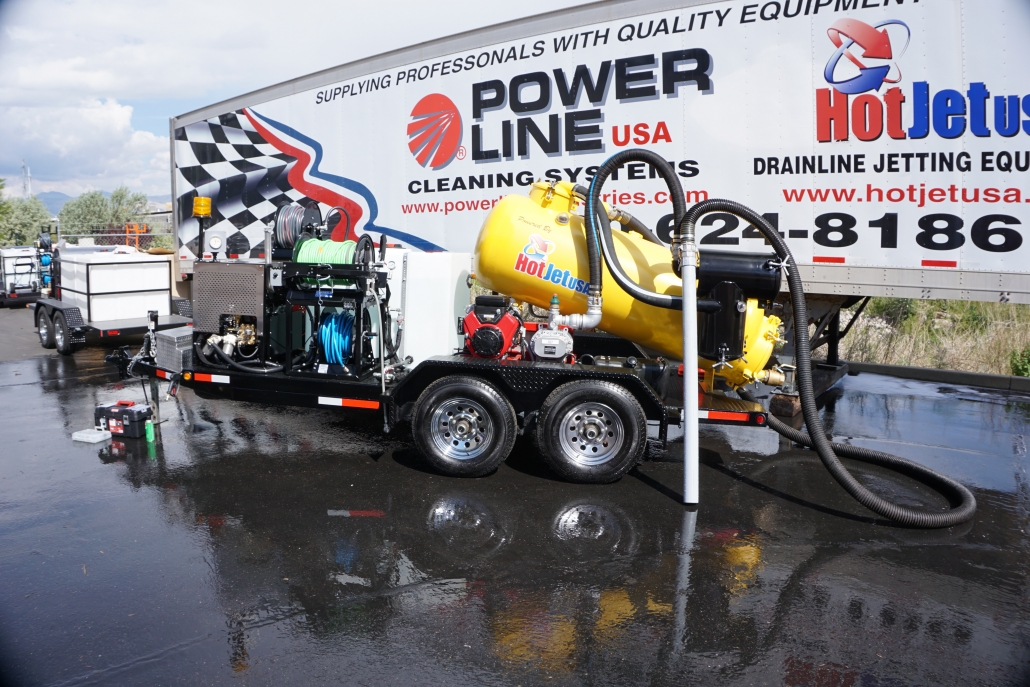

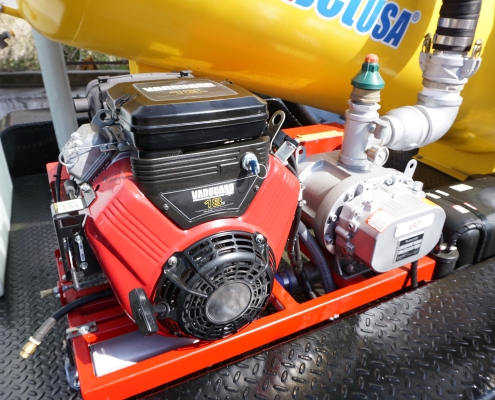

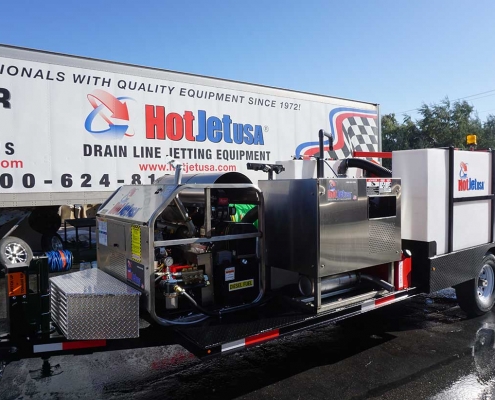

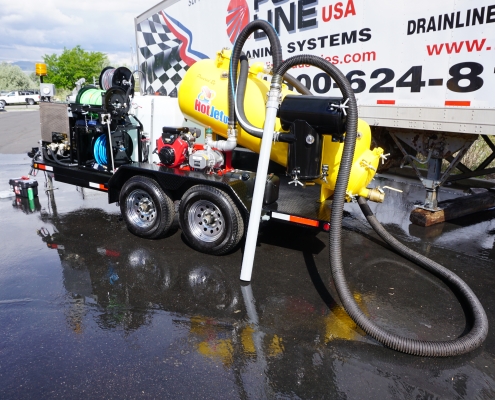

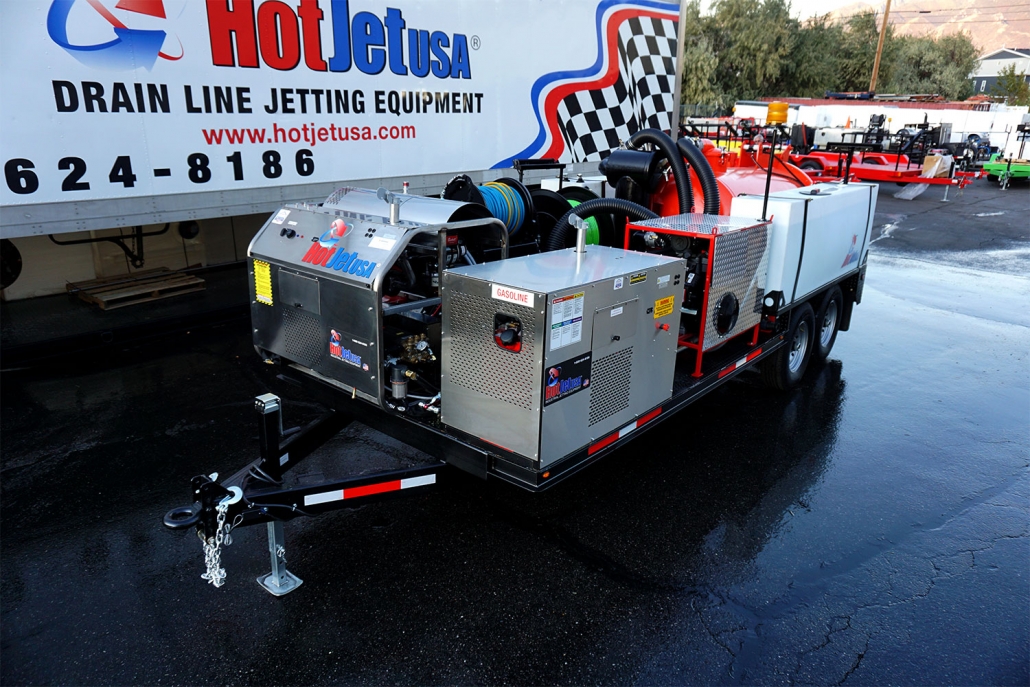

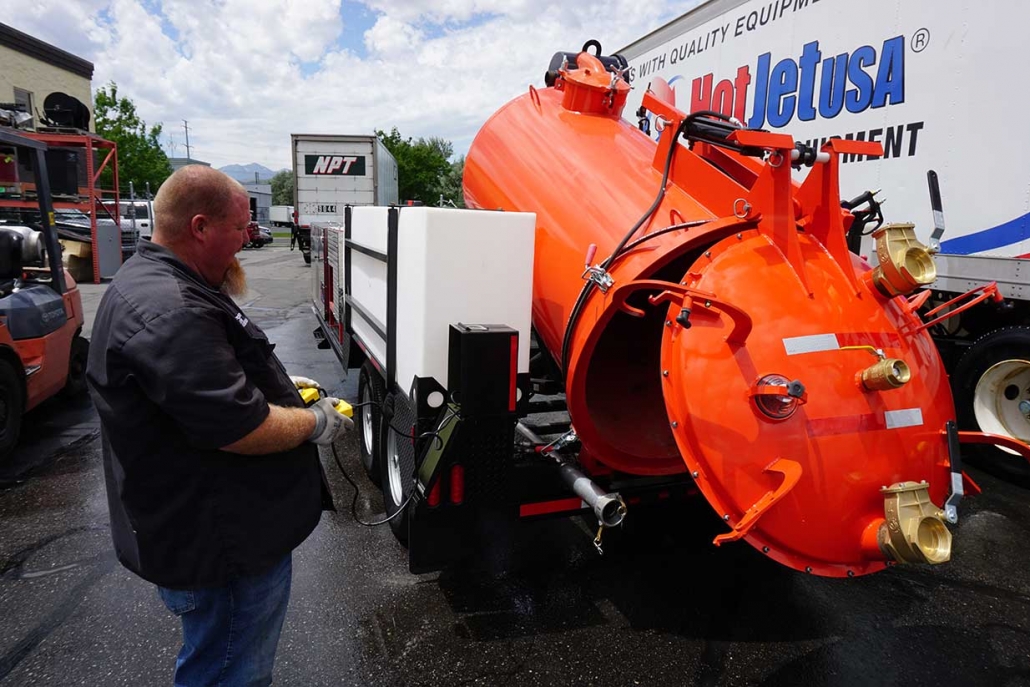

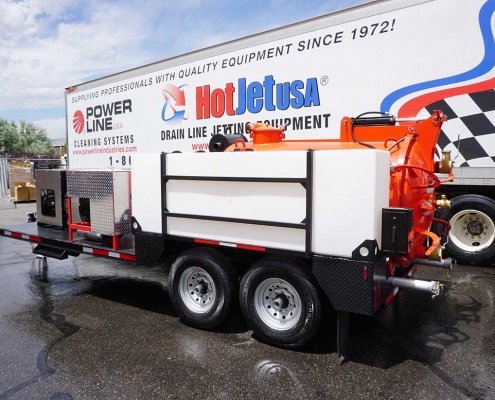

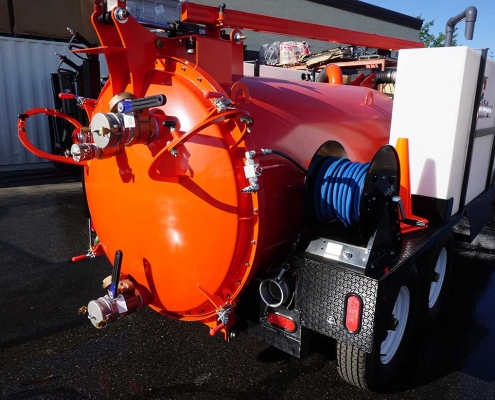

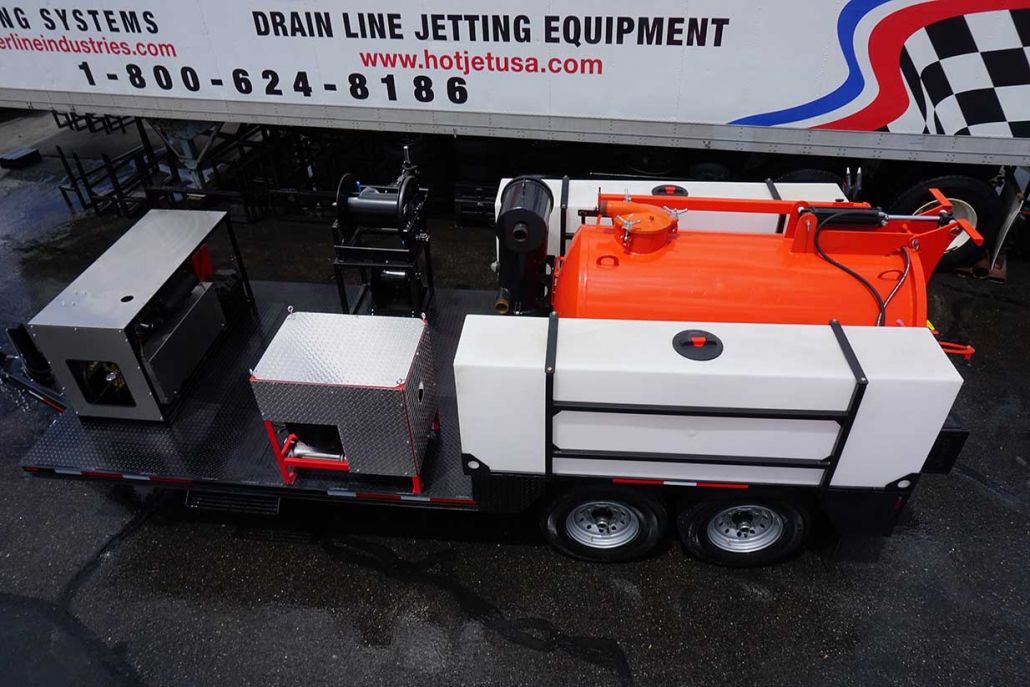

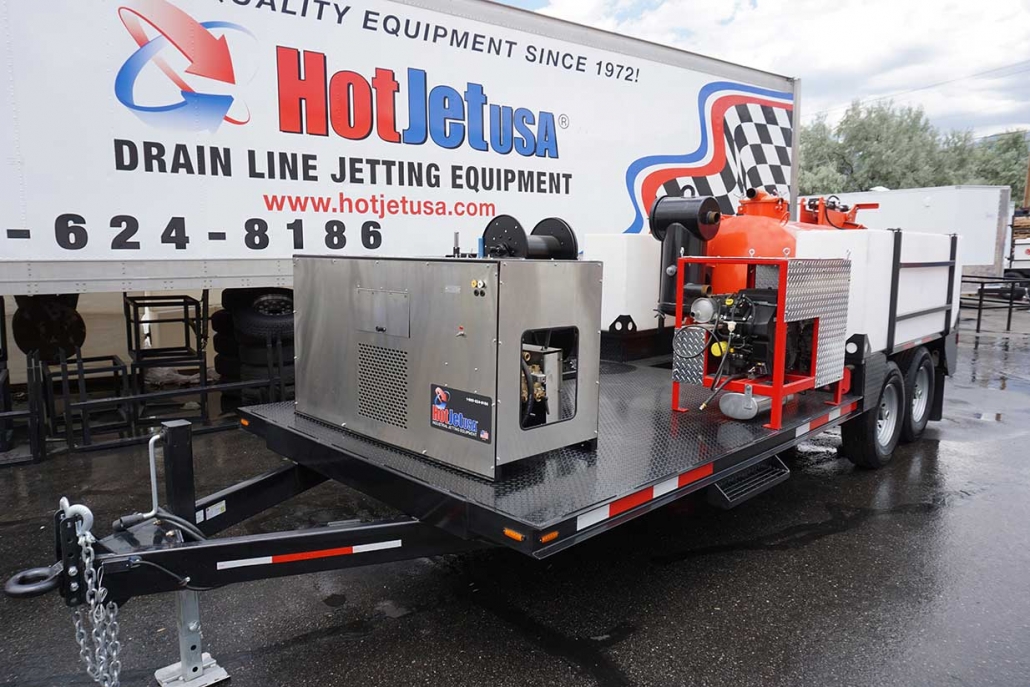

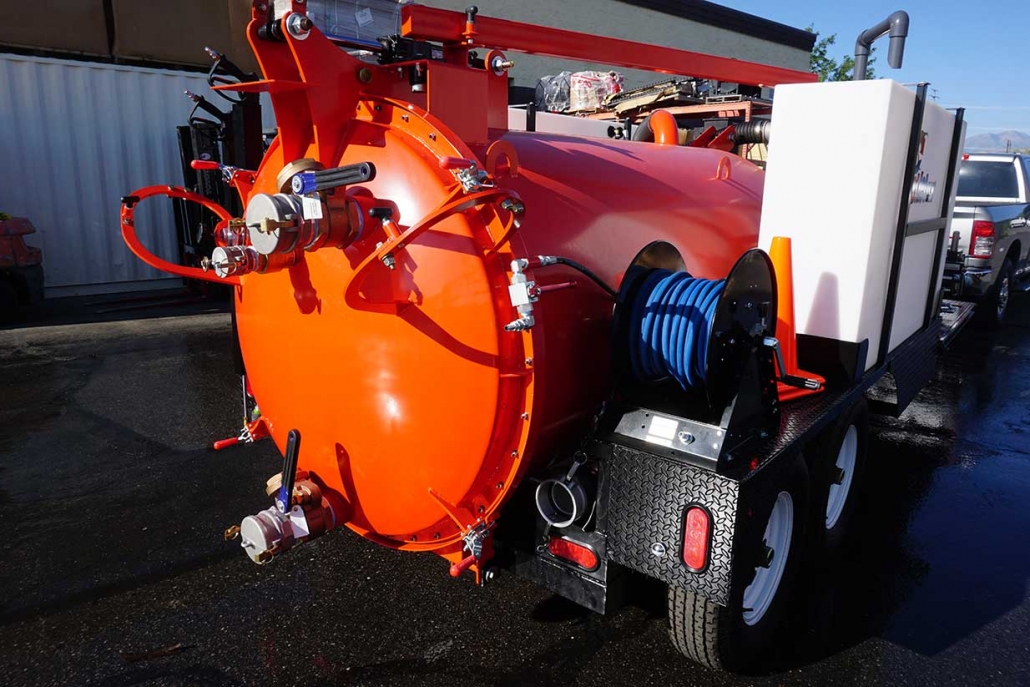

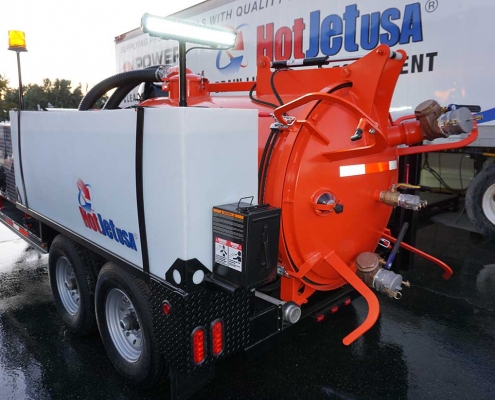

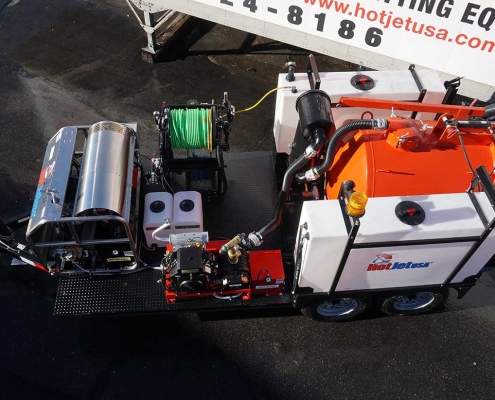

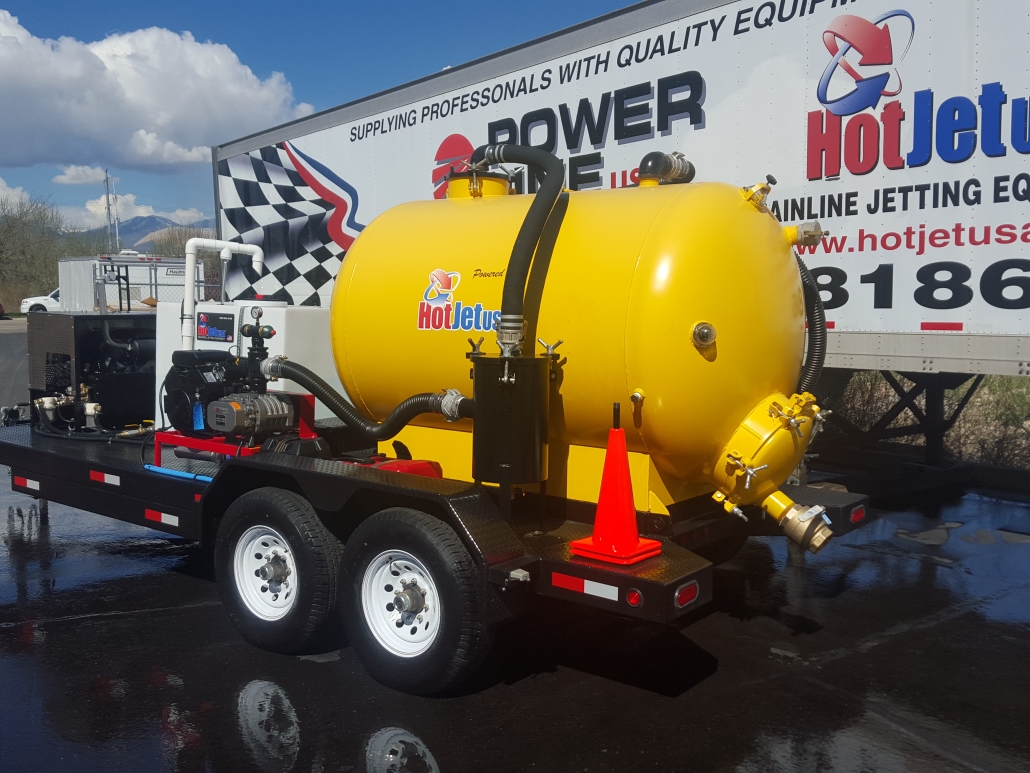

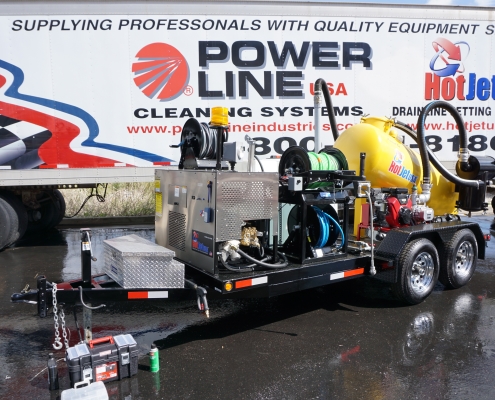

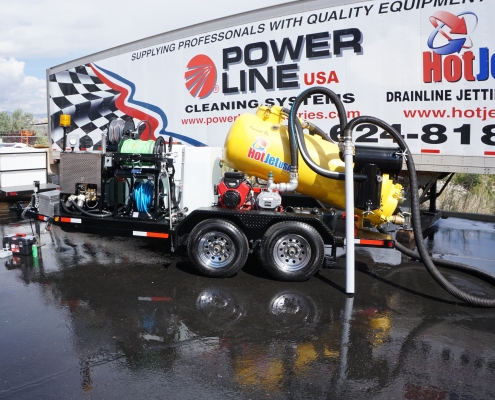

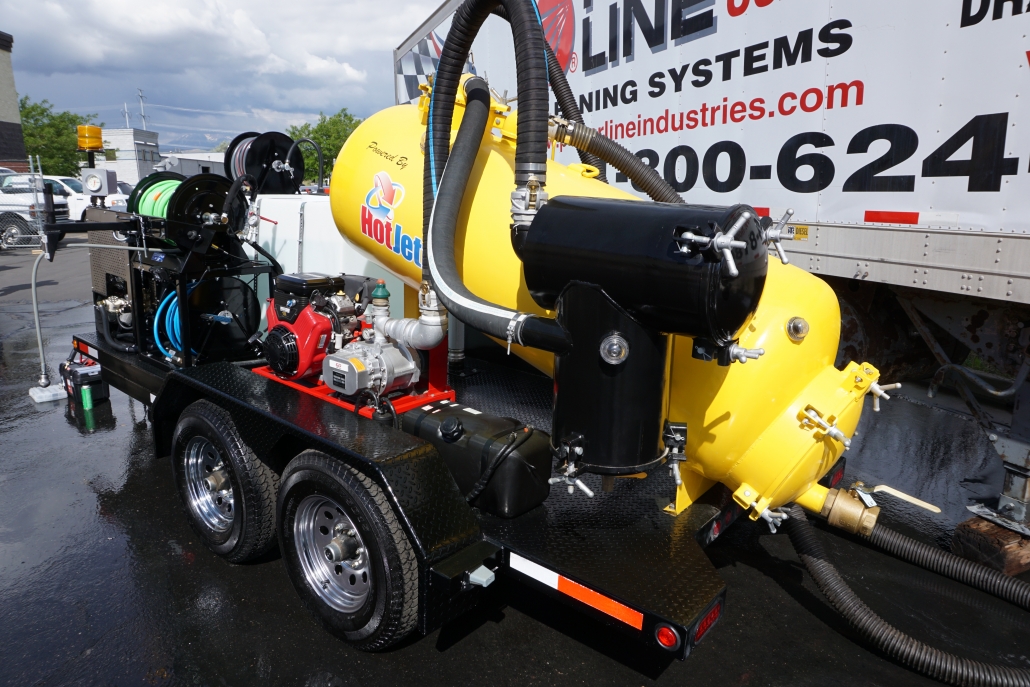

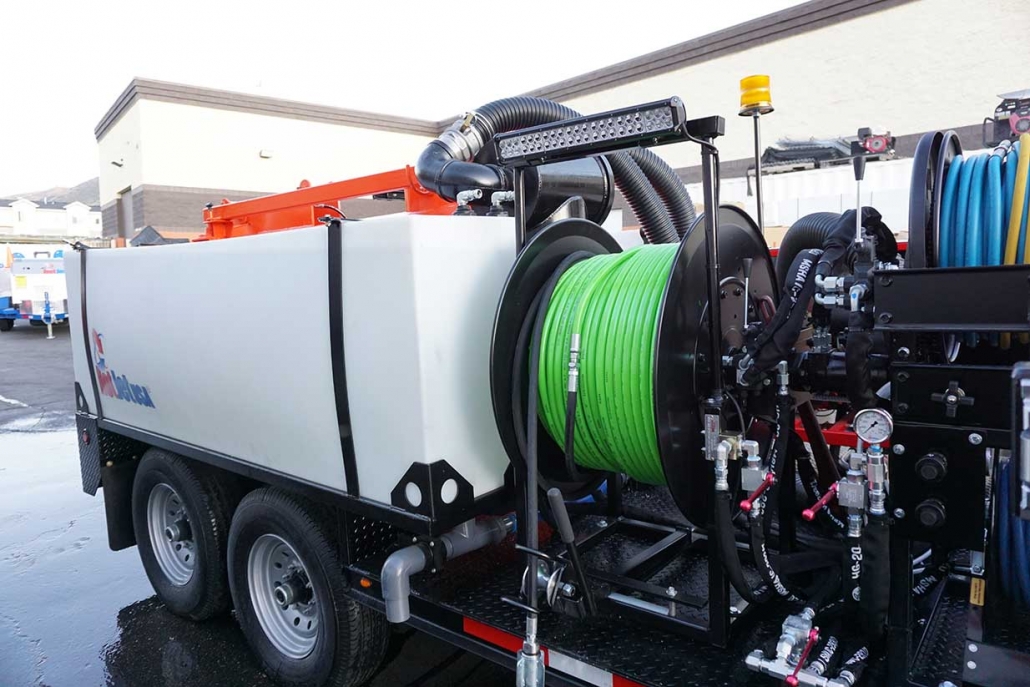

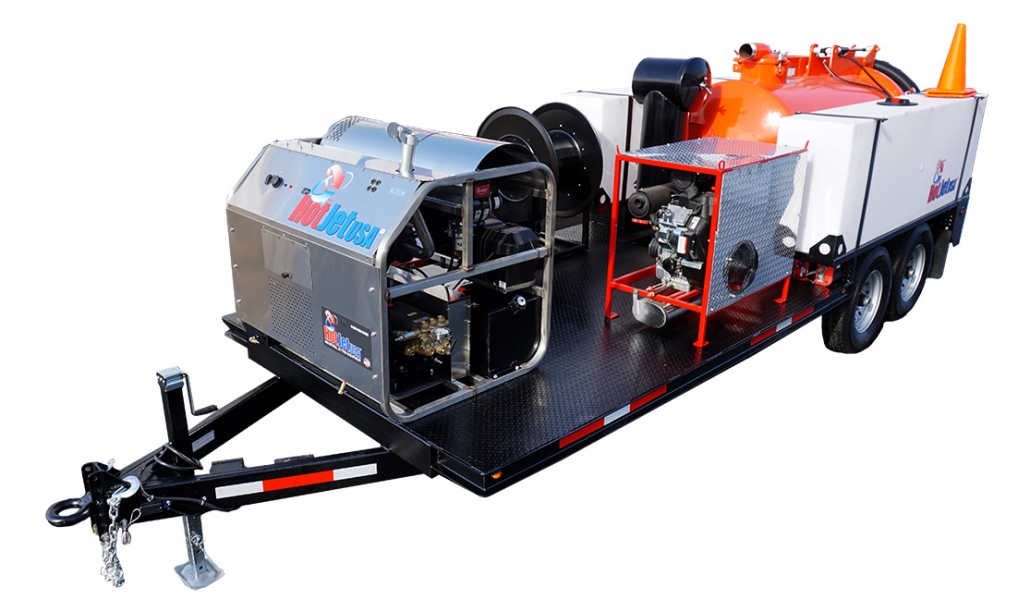

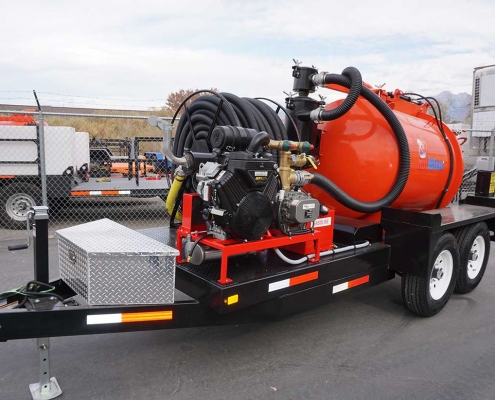

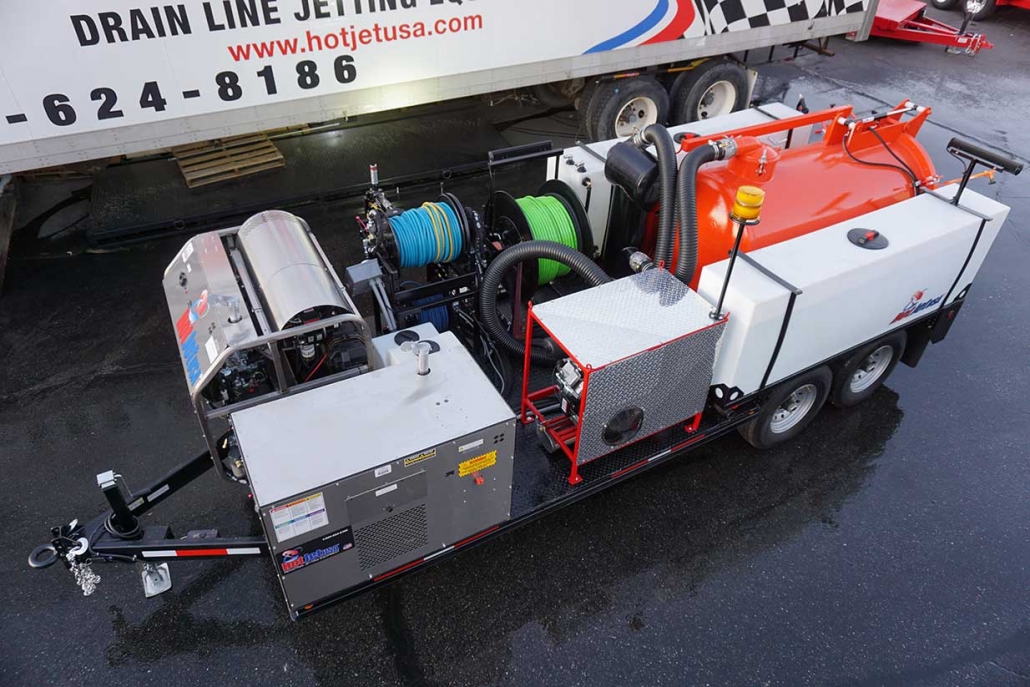

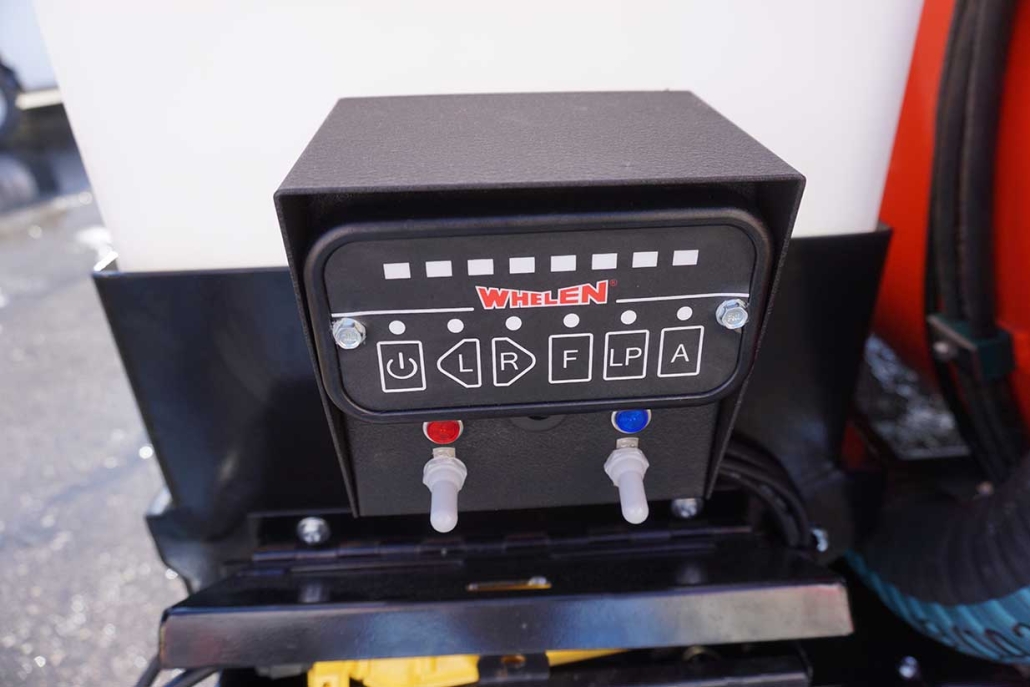

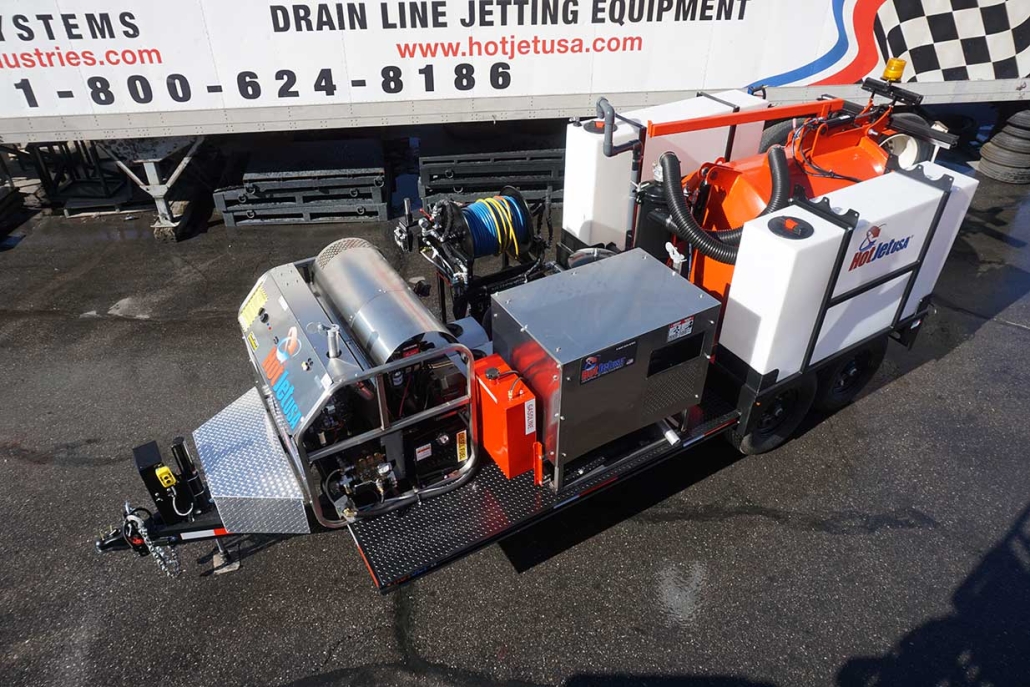

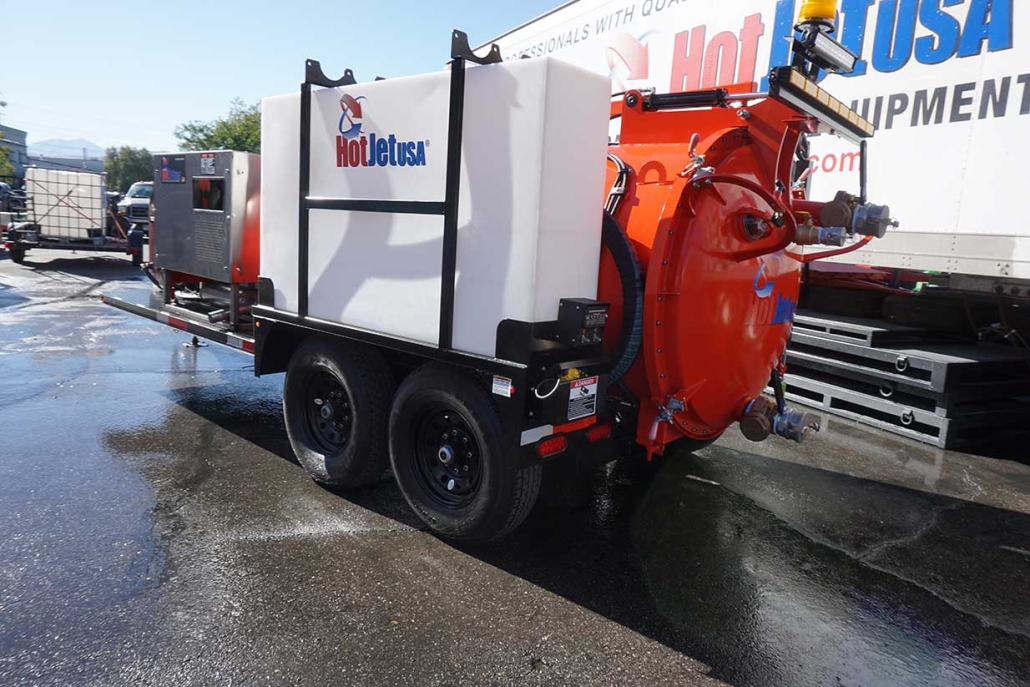

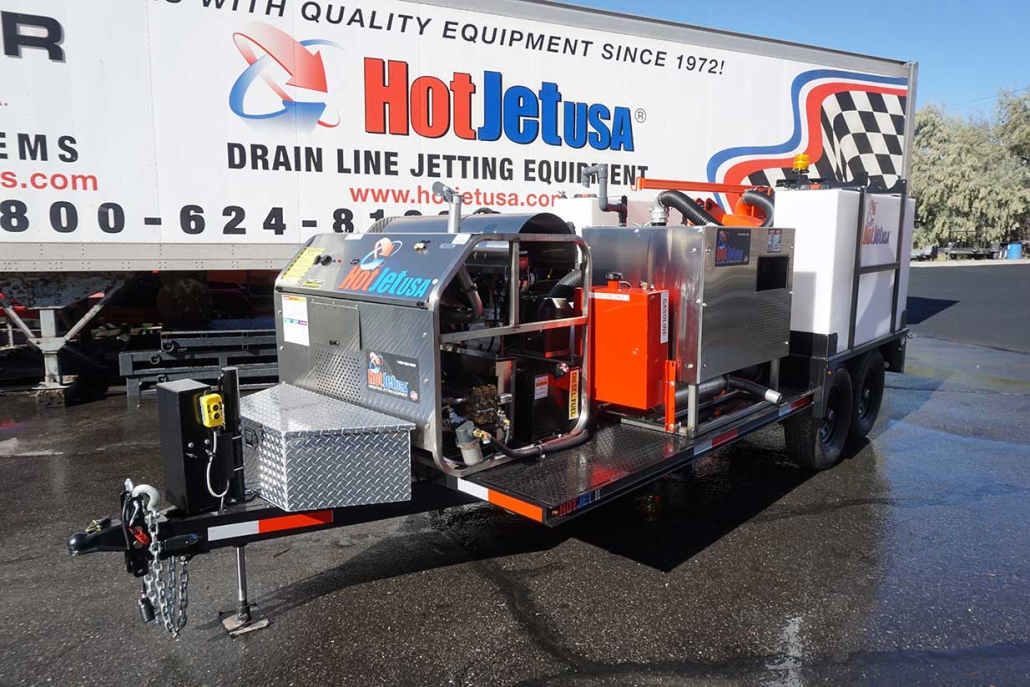

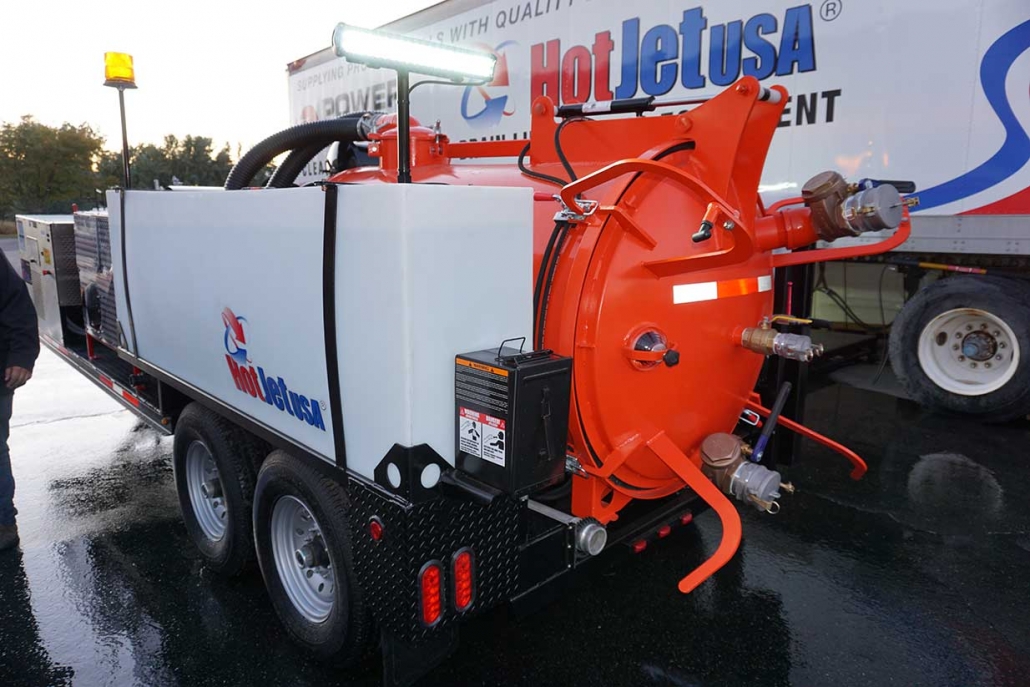

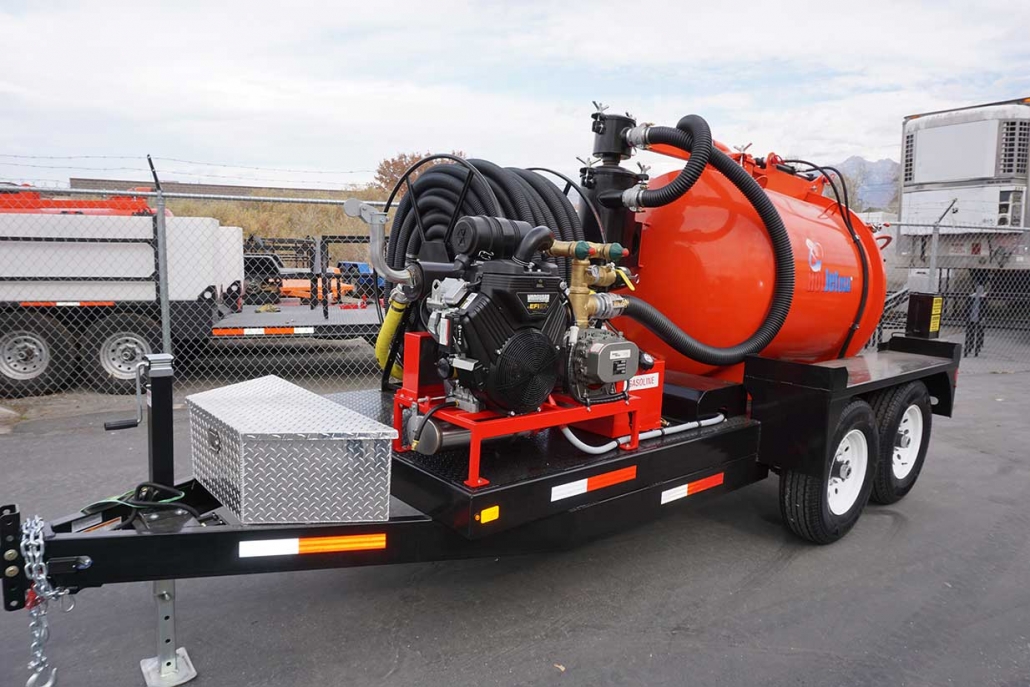

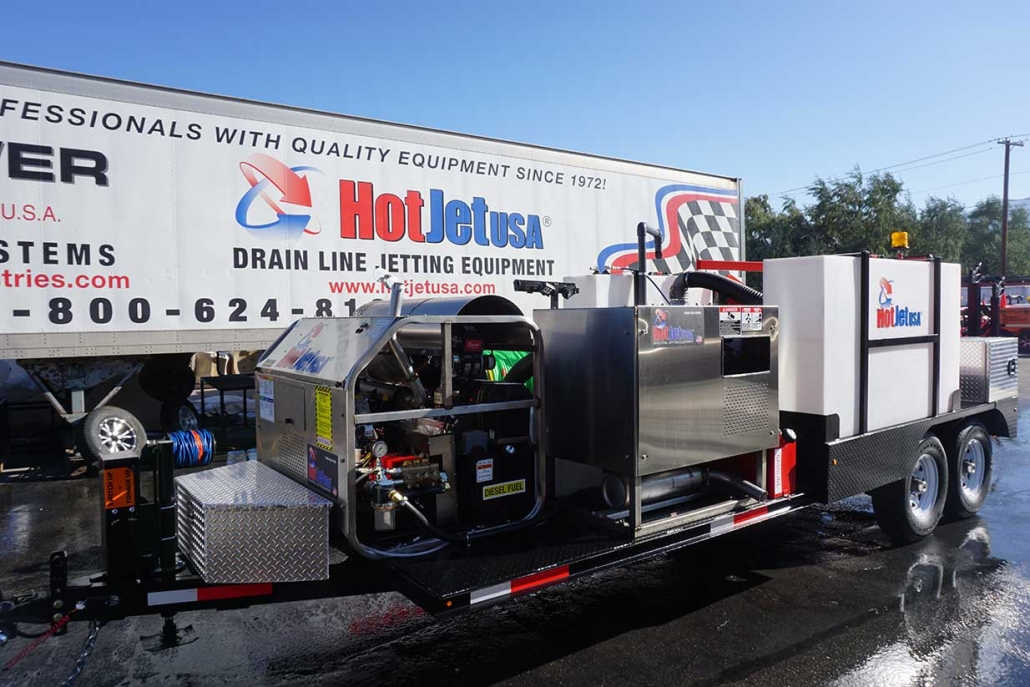

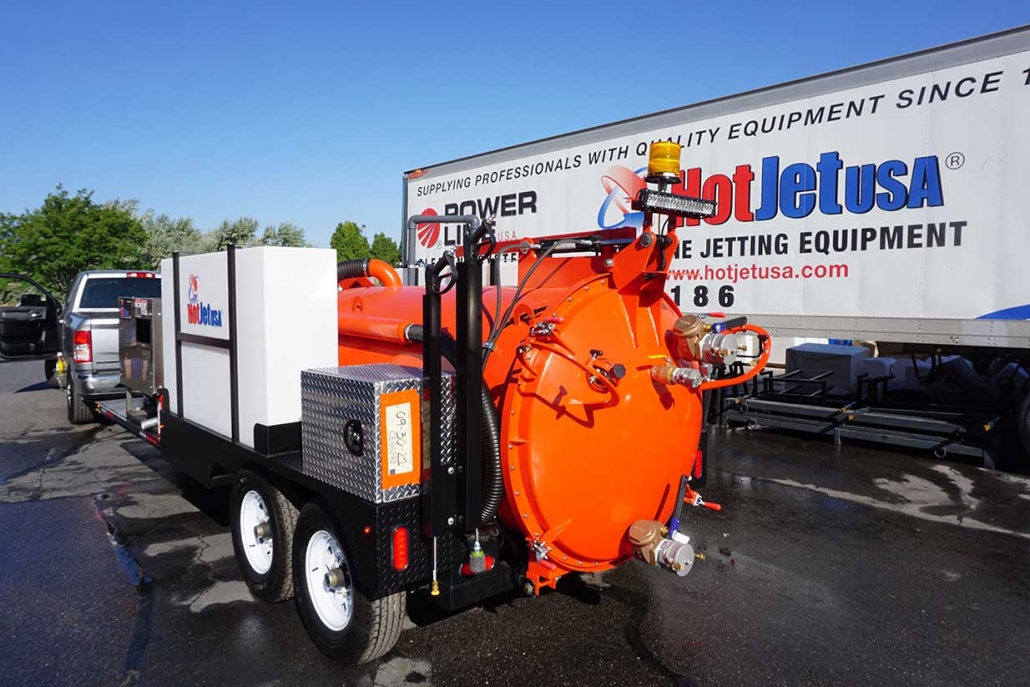

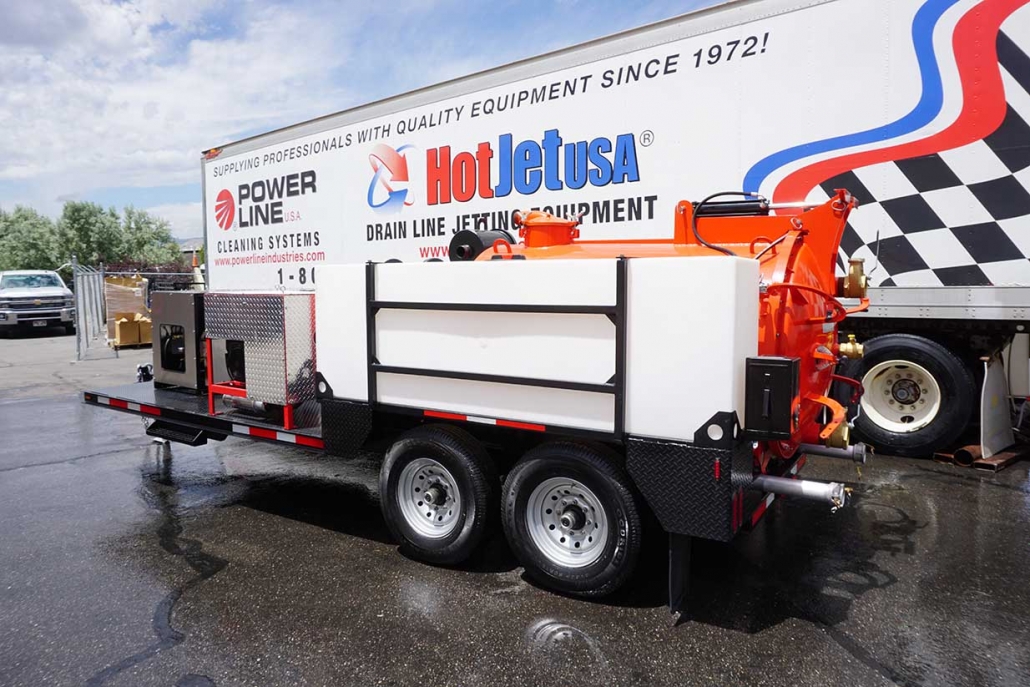

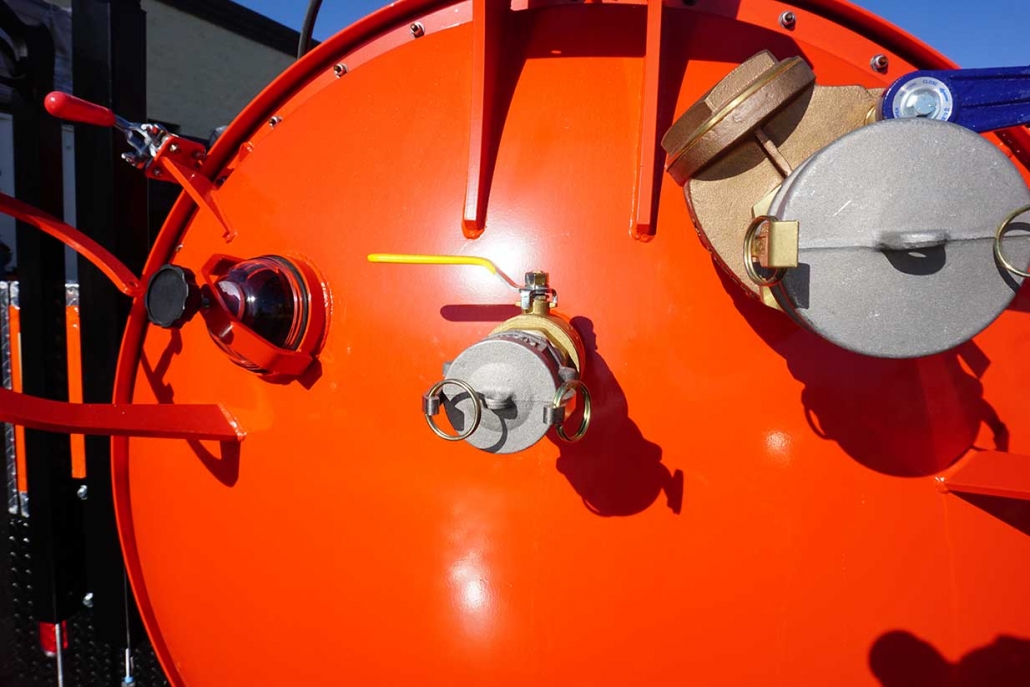

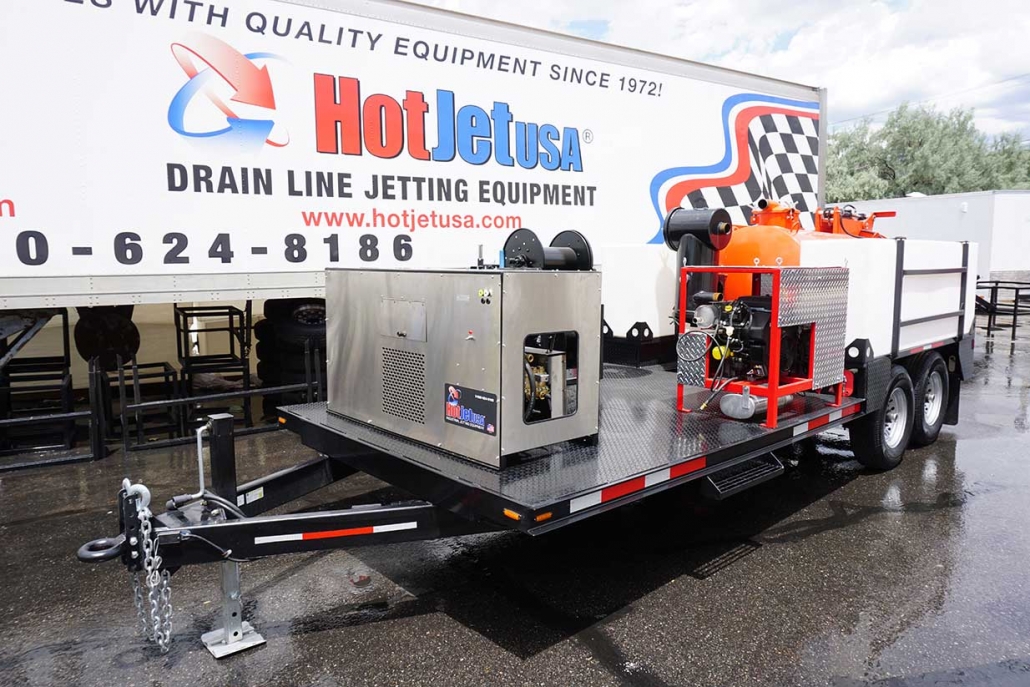

Vac ’N Jet Photo Gallery

Due to the custom nature of our Vac ‘n Jets, body style & features will vary. The following images are samples of our Vac ‘n Jet units we’ve engineered for various clients over time.
