GENERAL SPECIFICATIONS

• 330 or 660 Gallon Water Capacity
• Molded HDP Water Tank(s)
• Nema 4 Rated Control Panel
• Low Water “Shut Off” Feature
• 10’ Safety Colored Leader Hose
• 2” x 36” Tiger Tail Hose Protector
• Hydraulically Powered, Variable Speed Hose Reel
• Adjustable Pressure Relief/Control Valve(s)
• Adjustable Pulsation System with Control

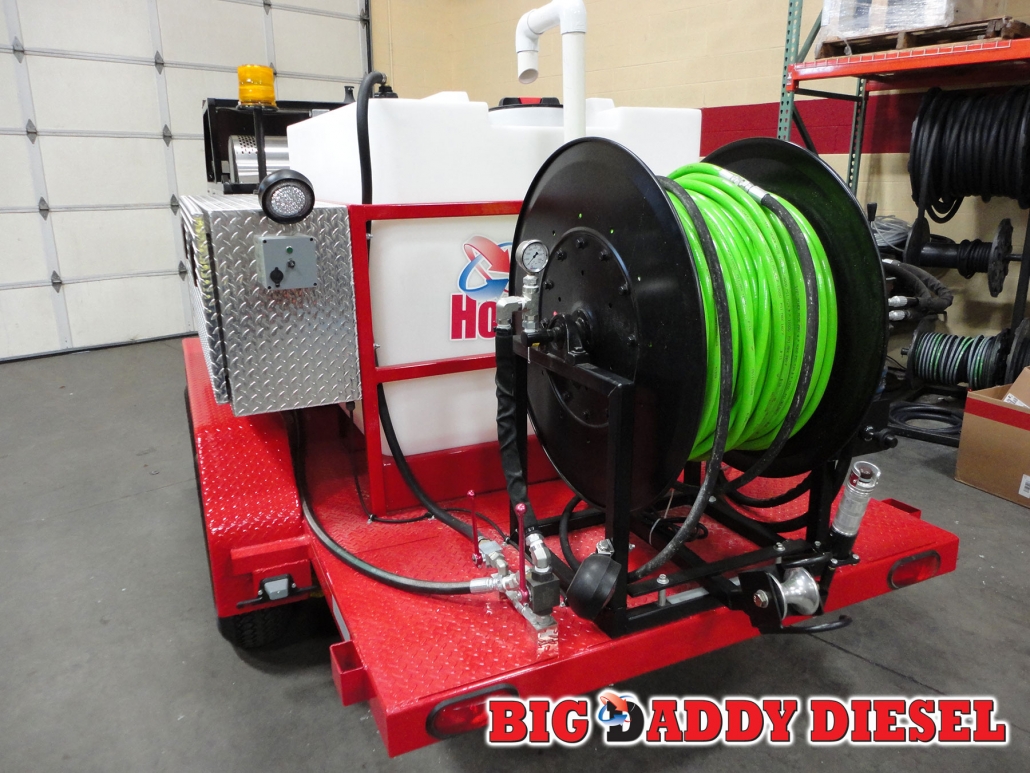

• Hose Reel with 100’ of 3/4” Supply Hose
• Rotary Beacon Light
• “Fast Fill” for Hydrant Hook-Up

PUMP

• “Run-Dry” Capable UDOR Penta Pump 18 GPM @ 4000 PSI or GENERAL/PRATIZOLI
• Triple Power Belt Driven
• Dual Safety Rupture Disks and Pump Saver System
• Rear Throttle Control

MOTOR DESCRIPTION

• 56HP Kubota Turbo Diesel Tier 4 Rated
• Low Noise Muffler
• Low Engine Oil/High Temperature Auto Shutdown System
• 24 Gallon Diesel Fuel Tank
• Large Battery Box

TRAILER DESCRIPTION

• Rugged, Compact Specially Engineered Trailer to Haul the Equipment and Water Load
• Leaf Spring Axles Cushion and Distribute the Weight for Easy Towing
• 5’x14’ Tandem Axle
• Tandem Axle (2 x 5,000 lb)
• Dual Axle Brake – DOT Legal in all 50 States
• Full Premium Powder Coat

NOZZLES

• Custom Drilled Warthog
• Lazer
• Ram
• Spinner
• Penetrator

UPGRADES INCLUDED

• 12 Volt Rear Power Connection for Spot Light or Camera
• Safety Cone Holder
• Rear LED Lighting
• Remote Control – Solid State Wireless Unit up to 300’

OVERALL DIMENSIONS – CAN BE CUSTOMIZED DEPENDING UPON NEEDS

• Overall Length 18’ 6” incl. hitch
• Deck Length 14’
• Height 8’ w/safety light
• Overall Deck Width 7’
• Weight Dry 3,840 lbs
• Weight Full Load 8,680 lbs
